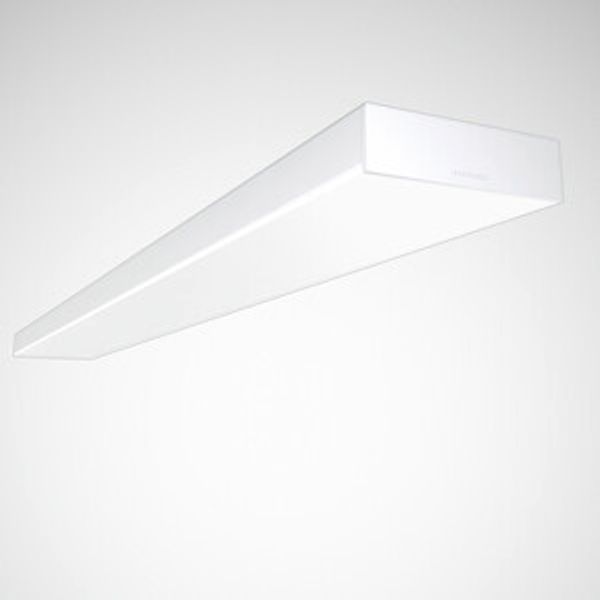

Surface-mounted luminaire Opendo D Diffuser White ETBLE 28W 4000lm Wall-Wash (WW) IK03 3 SDCM

Rectangular surface-mounted LED ceiling luminaire with full-surface, borderless PMMA cover. With CASAMBI module for integration into a wirelessly controllable mesh network of up to 250 divices. The system is commissioned using the Casambi app (iOS and Android). Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for ceiling mounting in indoor rooms. Verwendung als Lichtbandleuchte auf Anfrage möglich. With an internal printed cover pane and a smooth, opal PMMA cover on the room side. Wallwasher with asymmetric light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4000 lm, connected load 28 W, maximum luminous efficiency of luminaire 143 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1127 mm x 160 mm, luminaire height 48 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 4,0 kg. With Bluetooth Low Energy operating device (BLE). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
