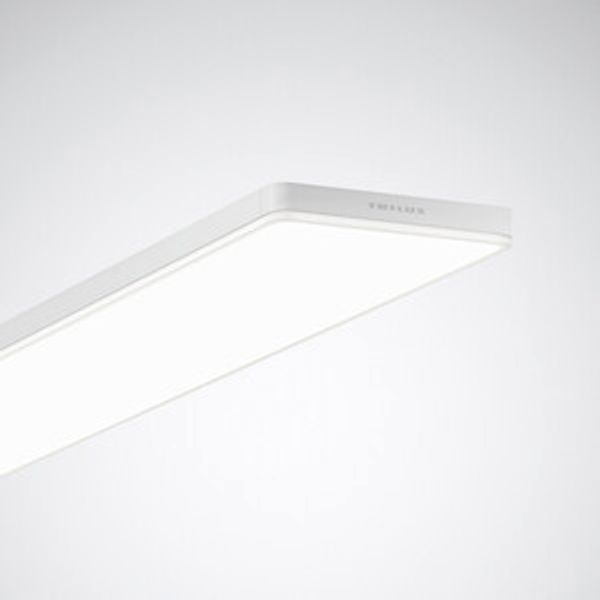

Surface-mounted luminaire Lunexo D HCL Prisms White ETDD8 54W 4400lm Wide reduced glare UGR19 (W19) IK03 3 SDCM

Exclusive rectangular surface-mounted LED luminaire with rounded corners and visible light edge. Surface-mounted luminaire for ceiling mounting in indoor rooms. For single luminaire applications. With inner CDP-I microprismatics. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. VDU workstation-compliant in accordance with 12464-1 With HCL equipment for controlling the light color by means of a separate control unit (DT8). LED panels configured with warm white and daylight white light colour LEDs. Luminaire luminous flux 4400 lm, connected load 54 W, maximum luminous efficiency of luminaire 92 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. Luminaire body of extruded aluminium profile. End caps of die-cast aluminium. Surface coated white (RAL 9016). Dimensions (L x W): 1200 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 8,9 kg. With two electronic control gear units, digitally dimmable (DALI DT8). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
