EATON

Surface Mounted Board, IP65, IK08, 4-rows 48 modules with screw termin

Ainult telli
EAN: 9010653111450
MPN: EP-504130
Pakend: 1
No pricing modes available.

Tehniline teave

Toote seisukord Uus
Tootja nimi Surface Mounted Board, IP65, IK08, 4-rows 48 modules with screw termin
Bränd EATON
Kategooriad Väikesed jaotuskilbid
Päritoluriik* ES
* Tegelik päritoluriik võib sõltuvalt tarn partiist erineda. Konkreetse päritoluriigi kinnitamiseks võtke palun ühendust oma kontohalduriga.
Harmoneeritud süsteemi kood 8538 1000 00
ETIM EC000214
Paigaldusviis Pinnapealne
Kere materjal Plast
Kaitseaste (IP) IP65
Katte kuju Suletud
Signal passing door No

Pakendamise üksikasjad

Pakkimistase 1 9010653111450

Muud tehnilised andmed

Värvus Hall

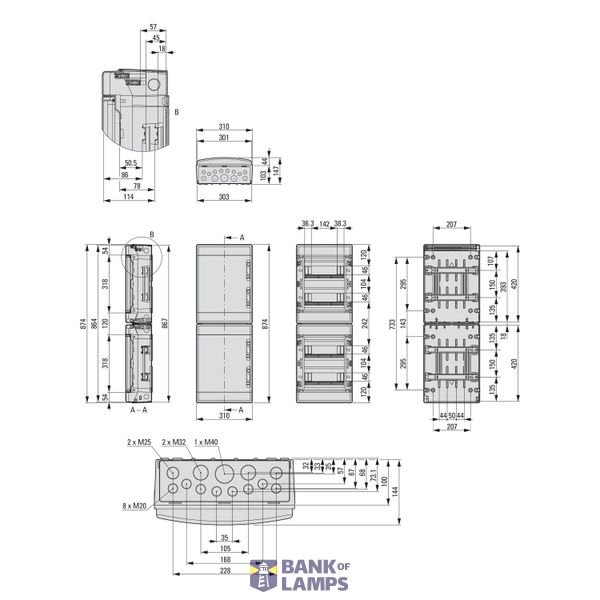

Laius 310 mm
Kõrgus 872 mm
Sügavus 148 mm
RAL-number 7035
Koos montaažiplaadiga No
Sisseehitussügavus 50.5 mm
Ridade arv 4
Kõrgus 46 mm
Katte liik Uks
Laius 216.6 mm
EMC-variant No
Laiendamine on võimalik Yes
Sisemine sügavus 100 mm
DIN-liist Yes
Laius mooduli arvudes 12
Sulgemisviis Muul viisil
Läbipaistev kate/uks Yes
Lukuga No
Earthing terminal block Yes
Neutral terminal block Yes

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) Paigaldusjuhend Muu Müügibrošüür

Kirjeldus

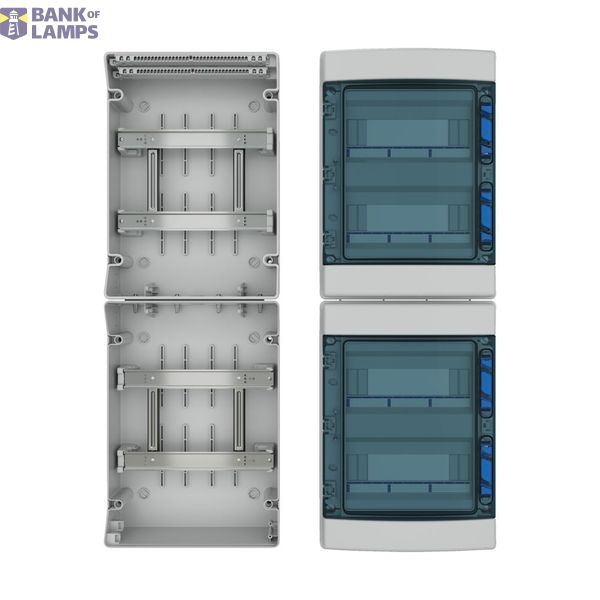

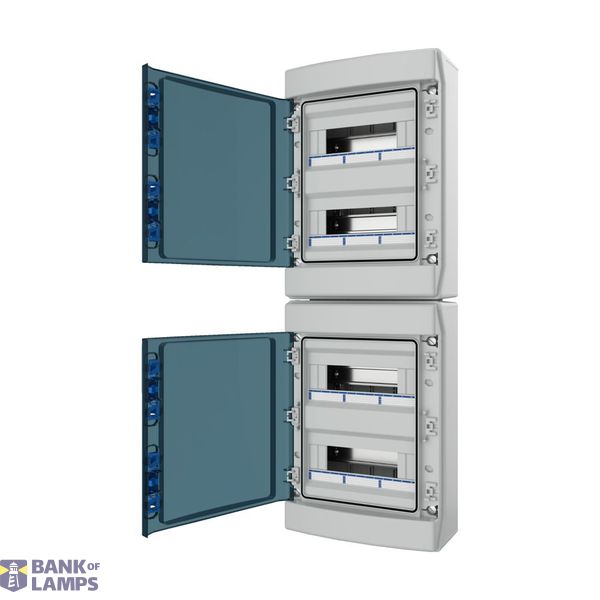

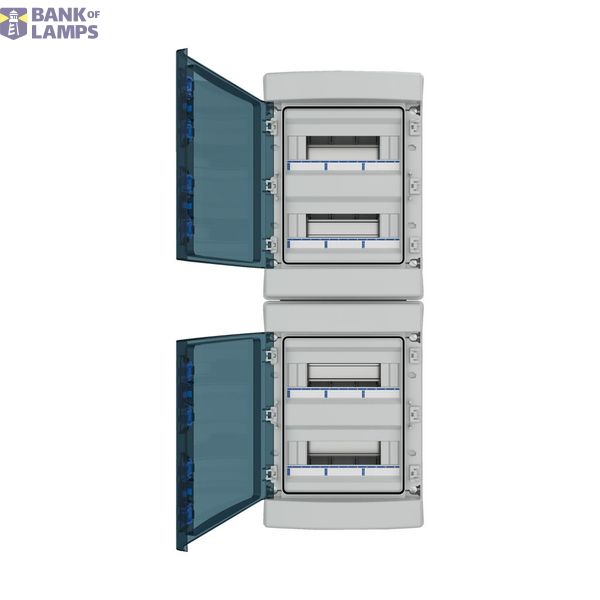

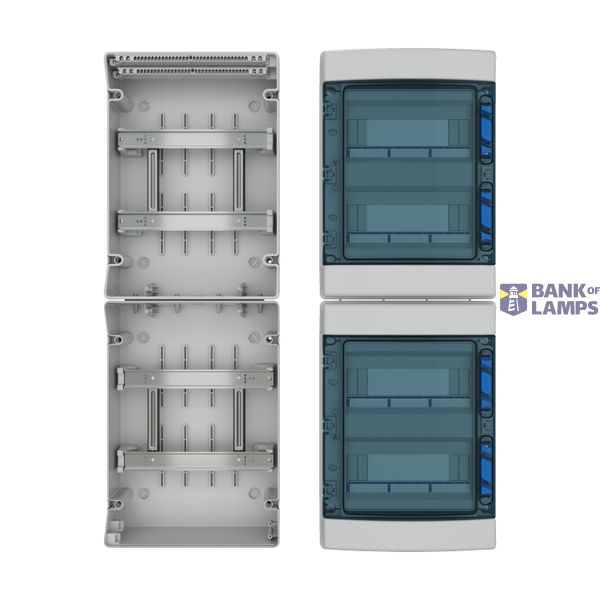

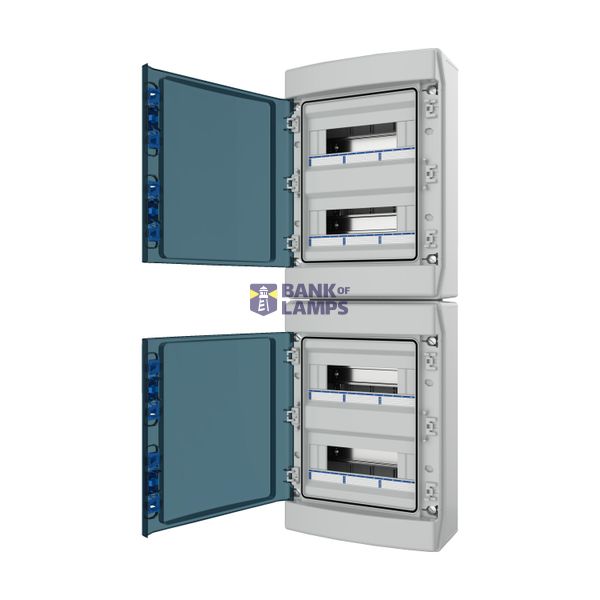

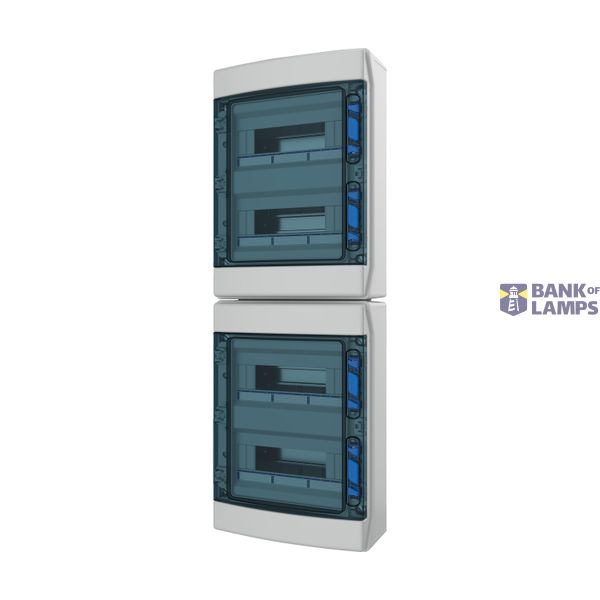

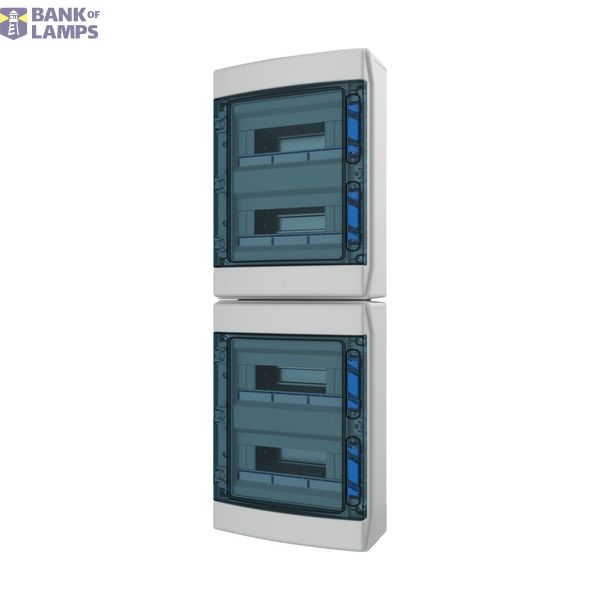

Surface mounted compact distribution board, halogen free ABS plastic, body Light grey RAL 7035, transparent door, 12 module units per row, 4 rows, IP65, protection class II, totally insulated. It also includes a depth-adjustable and fully removable DIN-rail frame, and N/PE screw-type terminals. DIN-rail frame is suitable for 45 mm modular installation devices, with a 150 mm DIN-rail distance between rows, ideal for the switchgear devices, and up to 46 mm space under it for an easy wiring. Pre-punched metric areas for cable entries at the top and bottom. Door position can also be reversed as per installation requirements.
