Surface-mount service distribution board with three-point turn-lock, mounting side panel, W = 600 mm, H = 760 mm
Müüja laos
Hind (ilma KM-ta):
218,66 €
EAN: 4015081454785
MPN: 149152
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
1-4 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | BP-O-600/7-MSW Surface-mount service distribution board with three-point turn-lock, mounting side panel, W = 600 mm, H = 760 mm |
| Bränd | EATON |
| Kategooriad |
Small Distribution Boards
|
| Päritoluriik | CZ |
| Harmoneeritud süsteemi kood | 8538 1000 00 |
| Paigaldusviis | Pinnapealne |
| Kere materjal | Teras |
| Kaitseaste (IP) | IP30 |
| Katte kuju | Suletud |
| Signal passing door | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 4015081454785 |
Muud tehnilised andmed
| Värvus | Hall |
| Laius | 615 mm |
| Kõrgus | 775 mm |
| Sügavus | 280 mm |
| RAL-number | 7035 |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 280 mm |
| Ridade arv | 4 |
| Kõrgus | 775 mm |
| Katte liik | Uks |
| Laius | 615 mm |
| EMC-variant | Yes |
| Laiendamine on võimalik | Yes |
| Sisemine sügavus | 257.5 mm |
| DIN-liist | No |
| Laius mooduli arvudes | 24 |
| Sulgemisviis | Muul viisil |
| Läbipaistev kate/uks | No |
| Lukuga | No |
| Earthing terminal block | No |
| Neutral terminal block | No |
Kirjeldus

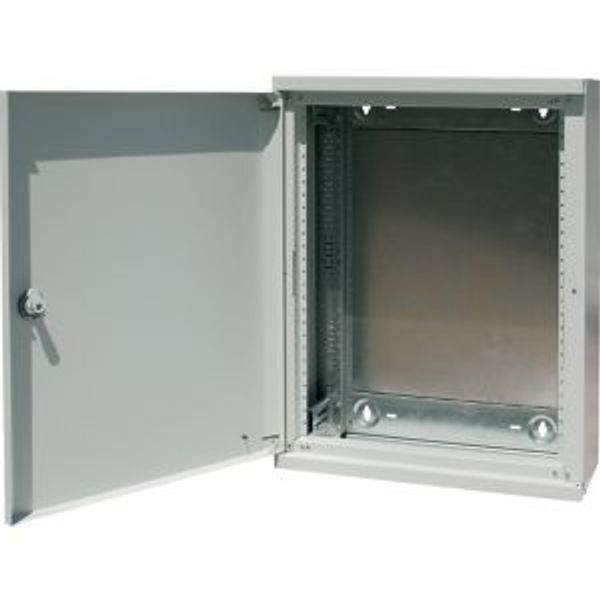

Surface-mounted service distribution board with cam lock - completely assembled, IP30, gray, RAL 7035, width 600 mm, outside height 760 mm, front plate height 650 mm, incl. base frame, side panels for MSW assembly configuration, base/roof panels and door, includes top cable entry, with push-through flange, with blanking bottom panels, BPZ-SNAP-MSW-CTS snap fitting element already installed, mounted with MSW mounting kit, module design, earthed metal covers, completely mounted, can be grouped, ample wiring area, variable interior fittings with or without removable mounting frame, well-structured , multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure, door can be right-hand or left-hand door
