EATON

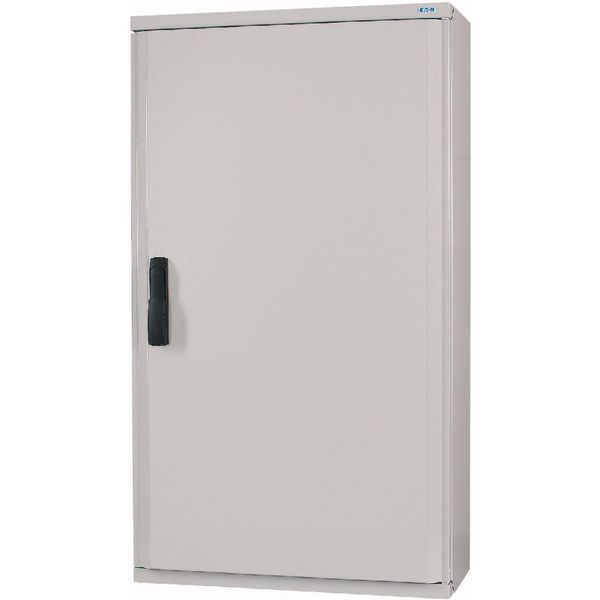

Surface-mount service distribution board with rotary lever, prepared for F3A gland plate inserts, W=600mm, H = 460 mm

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
198,79 €
Hind kehtib kuni 31.12.25
EAN: 4015081855100
MPN: 187825
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 1-4 weeks

Technical Information

Toote seisukord Uus
Tootja nimi BP-O-600/4-P-F3A Surface-mount service distribution board with rotary lever, prepared for F3A gland plate inserts, W=600mm, H = 460 mm
Bränd EATON
Kategooriad Small Distribution Boards
Päritoluriik CZ
Harmoneeritud süsteemi kood 8538 1000 00
Paigaldusviis Pinnapealne
Kere materjal Teras
Kaitseaste (IP) IP30
Katte kuju Suletud
Signal passing door No

Pakendamise üksikasjad

Pakkimistase 1 4015081855100

Muud tehnilised andmed

Värvus Hall
Laius 600 mm
Kõrgus 460 mm
Sügavus 250 mm
RAL-number 7035
Koos montaažiplaadiga No
Sisseehitussügavus 250 mm
Ridade arv 2
Kõrgus 460 mm
Katte liik Uks
Laius 600 mm
EMC-variant Yes
Laiendamine on võimalik Yes
Sisemine sügavus 262.5 mm
DIN-liist No
Laius mooduli arvudes 24
Sulgemisviis Muul viisil
Läbipaistev kate/uks No
Lukuga No
Earthing terminal block No
Neutral terminal block No

Kirjeldus

Surface-mounted service distribution board with rotary level - fully assembled, IP30, gray, RAL 7035, width 600 mm, outside height 460 mm, front plate height 350 mm, depth 250 mm, incl. base frame, enclosure side plates, base/roof panels and door, prepared for F3A gland plate inserts (single conductor run), mounted on base frame - no MSW mounting kit, module design, earthed metal covers, completely mounted, can be grouped, ample wiring area, variable interior fittings with or without removable mounting frame, well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure , door can be right-hand or left-hand door
