LED spotlight (projector)
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 383,51 €
EAN: 4053167338680
MPN: 60715010
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | SUP2 L PROJ LED1000-940 FRM DIM 3CV WH - LED spotlight (projector) |
| Bränd | Zumtobel |
| Kategooriad |
Raudteelaternad ja tarvikud
|
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 9405 1190 00 |
| Laius | 65 mm |
| Pikkus | 150 mm |
| Kõrgus/sügavus | 243 mm |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP20 |
| Värvustemperatuur | 4000 K |
| Süsteemi võimsus | 14 W |
Pakendamise üksikasjad
| Pakkimistase 1 | 4053167338680, 4053167338680 |
Muud tehnilised andmed
| Kaitseklass | I |
| Peegeldi | Muul viisil |
| Ühenduse liik | Busbar adapter |
| Kere värvus | Valge |
| Pinge liik | AC |
| Liikumisanduriga | No |
| Valgustusanduriga | No |
| Sobib ripp-paigalduseks | No |
| Kere materjal | Alumiinium |
| Kattematerjal | Klaas, läbipaistev |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sisseehitatud isoleeritud kate, tulekindlus "F koos kattega" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Sobib sisseehitatud paigalduseks | No |
| Sisaldab juhtseadist | Yes |
| Kuvariga töökohale | No |
| Sobib pindpaigalduseks | Yes |
| Ühendatava juhi ristlõige, | 1.5 mm² |
| Seadistatavus | Pööratav ja kallutatav |
| Sobib paigaldamiseks jalamile/põrandale | No |
| Sobib valgustussiinile | Yes |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Juhtmestiku liik | Ending |
| Süttivuskatse IEC 60695-2-11järgi | 650 °C - 30 s |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | Yes |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | Yes |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimisfunktsioon puudub | No |
| Reguleerimine, DSI (digital signal interface) | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Beam angle adjustable | Ei |
| Exchangeable control gear | Yes |
| Sobib lakke paigaldamiseks | Yes |
| Võimsustegur | 1 |
Allalaadimised
Kirjeldus

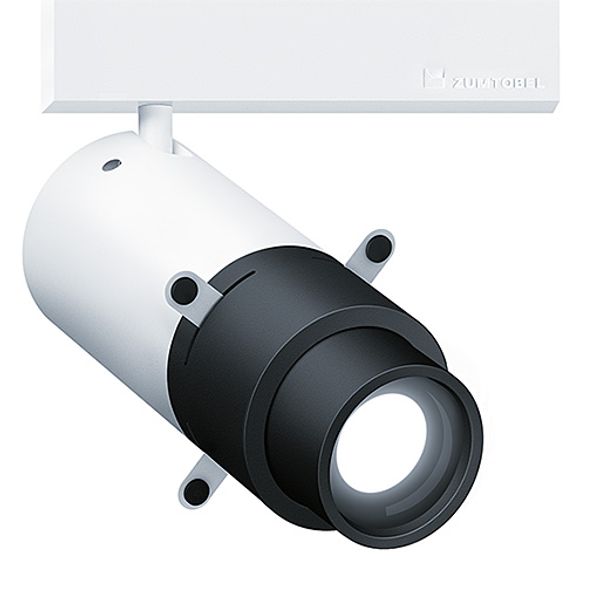

LED spotlight (projection) "maxi" construction size; equipped with lens system for high-quality accent lighting in museums and exhibition spaces; shield is designed to produce rectangular, sharp-edged and high-contrast illumination of surfaces; focus adjustment via the objective lens; lenses and shield are integrated into spotlight housing for avoiding stray light; Luminaire with 3-phase adapter with control gear in adapter track box (for 3-phase track); lamp(s): 1/14W, Colour rendering Ra > 90, colour temperature 4000 K; Luminaire with shield for crisp, rich-contrast, rectangular illumination of surfaces; colour tolerance: SDCM 2 initial, LED PCBs premium-selected; luminaire luminous flux: to approx. 750 lm; service life: 50000h at 80 % luminous flux; dimming of illuminance, Luminaire with dimming directly over luminaire; flicker-free light (amplitude dimming); luminaire head can rotate through 360° and tilt through 90°; separate fixing of axes of movement using tool (contained in scope of supply); luminaire housing made of die-cast aluminium, coated white; lens: polished silicate glass; Luminaire input power: 14 W; mains voltage: 220-240V/ 50/60Hz; dimensions: 150x65x243 mm; weight: 0.95 kg;
Note: suitable for mounting horizontally and vertically on wall; not suitable for point outlets.;
Use with presence/motion sensors is not permissable
