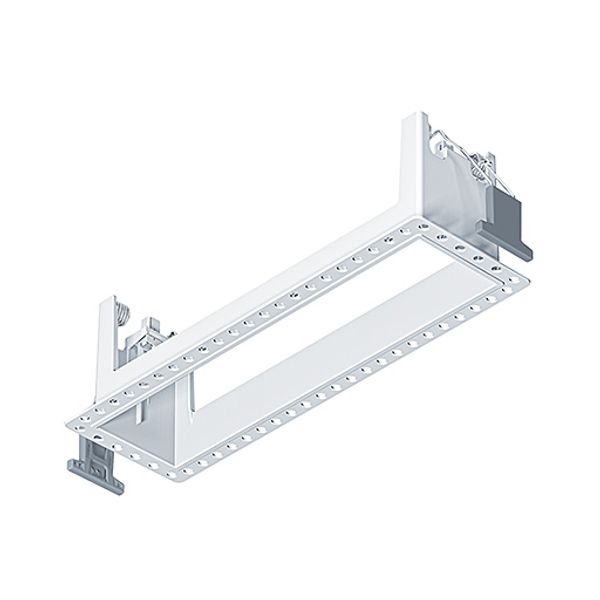

SUI DSG6 FRAME WH TL - Installation frame image 1
SUI DSG6 FRAME WH TL - Installation frame image 2
SUI DSG6 FRAME WH TL - Installation frame image 3
SUI DSG6 FRAME WH TL - Installation frame thumbnail 1
SUI DSG6 FRAME WH TL - Installation frame thumbnail 2
SUI DSG6 FRAME WH TL - Installation frame thumbnail 3
Zumtobel

Installation frame

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
74,67 €
Hind kehtib kuni 24.12.25
EAN: 4053167363156
MPN: 60200132
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi SUI DSG6 FRAME WH TL - Installation frame
Bränd Zumtobel
Kategooriad Valgusti tarvikud
Valgustite raamid
Päritoluriik DE
Harmoneeritud süsteemi kood 9405 9900 00
Laius 78 mm
Kõrgus 76 mm
Lisatarviku liik Paigaldusraam
Pikkus 281 mm

Pakendamise üksikasjad

Pakkimistase 1 4053167363156, 4053167363156

Muud tehnilised andmed

Materjal Plast

Allalaadimised

RoHS deklaratsioon Müügibrošüür

Kirjeldus

Installation frame with plaster surround (trimless) for plaster ceilings; plaster surround providing clean edge for on-site filling of mounting joins with plaster; accommodates the "Synchro-Gimbal" LED ceiling recessed luminaire; simple tool-free mounting of the LED ceiling recessed luminaire into the installation frame using CLIX technology; frame made of polycarbonate, white; ceiling mounting of the installation frame using spring clips in ceilings of thickness 1-25mm; ceiling cutout: 264x60mm, minimum recess depth with LED ceiling recessed luminaire: 100mm + ceiling thickness; outside dimensions of frame: 281x78x76mm; weight: 0.1 kg; Note: "Synchro-Gimbal" LED ceiling recessed luminaire must be ordered separately.
