Straight length, Canalis KBA, 25 A, 1 circuit 3L+N+PE, 2 tap-off units, 3 m, white
Laos: Ei
Hankija laovaru: Jah
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
33,79 €
EAN: 3606480498763
MPN: KBA25ED4302W
Pakend: 1
Karp: 6
Kaubaalus: 144
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Straight length, Canalis KBA, 25 A, 1 circuit 3L+N+PE, 2 tap-off units, 3 m, white |
| Bränd | Schneider Electric |
| Kategooriad |
Busbar Systems and Accessories
|
| Päritoluriik | FR |
| Tunnuspinge, AC 50 Hz | 230-400 V |
| Nimivool AC 50 Hz korral | 25 A |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606480498763 |
| Pakkimistase 2 | 3606480498760 |
| Pakkimistase 3 | 3606480498763 |
Muud tehnilised andmed
| Värvus | Valge |
| Laius | 30 mm |
| Mudel | Üheosaline |
| Kõrgus | 46 mm |
| Painduv | No |
| RAL-number | 9003 |
| Juhtide arv (ilma maanduseta) | 4 |
| Pooluste arv | 4 |
| Pikkus | 3000 mm |
| Kaitseaste (IP) | IP55 |
| Väljavõttude arv | 2 |
Allalaadimised
Kirjeldus

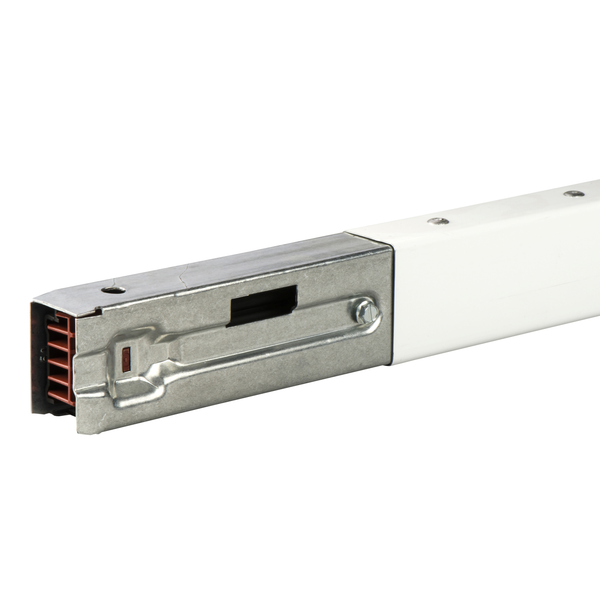

This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 2 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
