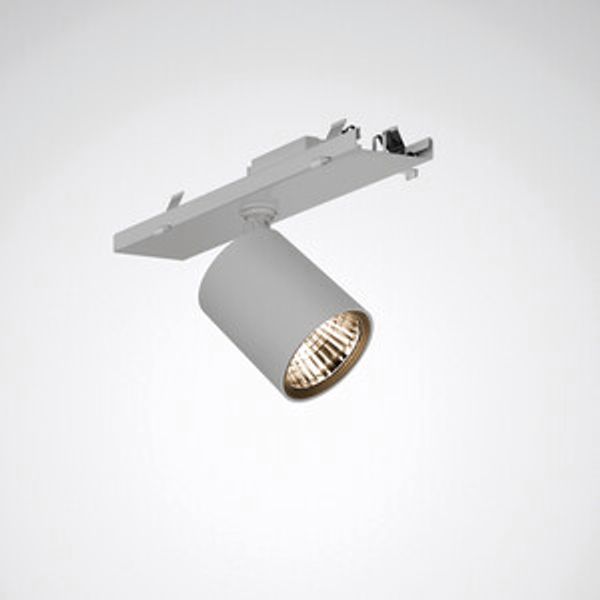

Spots / Projectors 7651 B.Veo Reflector Aluminium ETBLE 36W 4555lm Medium Flood (MF) IK00 2 SDCM

Gear tray for E-Line 7651 Fix continuous line luminaire system with spotlight for the accentuating of goods. With CASAMBI module for integration into a wirelessly controllable mesh network of up to 250 divices. The system is commissioned using the Casambi app (iOS and Android). Suitable for combination with E-Line Fix 0765... trunking with female connector interval 375 mm for IP20. Compatible with E-Line T5N/LED 07650... support profiles. As single or continuous line luminaire for direct ceiling mounting as well as suspended mounting using accessories to be ordered separately. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Optical system with 3-D faceted reflector. Medium Flood distribution characteristic. beam angle 24°. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4555 lm, connected load 36 W, maximum luminous efficiency of luminaire 127 lm/W. Light colour warm white, correlated colour temperature (CCT) 2700 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 2 SDCM.. Mean rated service life L80(tq 25 °C) = 50,000 h. Gear tray of sheet steel. Directional spotlight of die-cast aluminium, structure powder-coated. Surface coated silver-grey (RAL 9006). Permissible ambient temperature (ta): +25 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, Protection rating on room side: IP20. Weight: 1,1 kg. Self-actuating electrical connection via plug contacts with phase selection. Phase selection is without use of tools. With Bluetooth Low Energy operating device (BLE). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
