Corner channel for LED light line
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 9010757076433
MPN: 22172368
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | SLN2-C CL MSC L543 WH - Corner channel for LED light line |
| Bränd | Zumtobel |
| Kategooriad |
Valgusti tarvikud
Valgustid |
| Päritoluriik | AT |
| Harmoneeritud süsteemi kood | 9405 1190 00 |
| Laius | 76 mm |
| Kõrgus | 92 mm |
| Lisatarviku liik | Muul viisil |
| Pikkus | 545 mm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010757076433, 9010757076433 |
Muud tehnilised andmed
| Värvus | Valge |
| Materjal | Alumiinium |
Allalaadimised
Videos
Kirjeldus

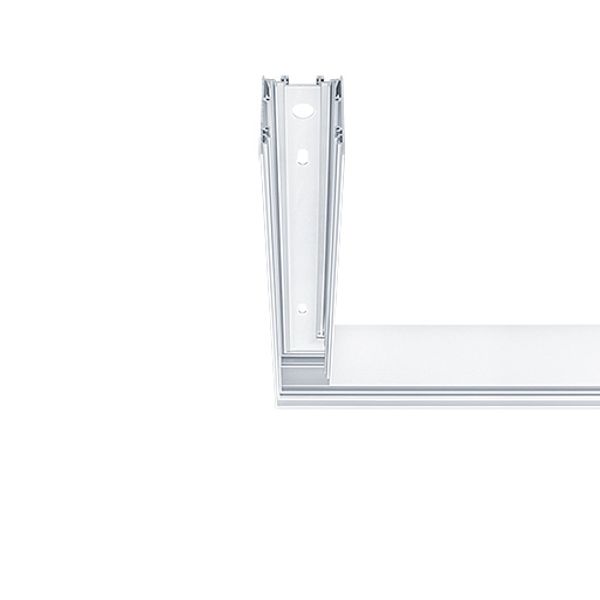

Surface-mounted Corner channel for LED light line made of aluminium, white (similar to RAL 9016), powder coated. Dimensions: 545 x 76 x 92 mm weight: 2.25 kg. Slotlight Infinity II consists of a channel, LED batten, cover and accessories, which must be configured and ordered separately. Impact resistance: IK07 in combination with PC, PCO or WW optic, IK05 with DD optic and IK03 with Minicell. Protection rating IP54 for wall mounting with L-bracket as well as mounting with ceiling mounting spring and cord suspension in IP40 and IP54 version. For direct ceiling and wall mounting: protection rating IP40. Ball impact protection for ceiling mounting directly to the ceiling or pendant suspension with ball impact protection chain. No ball impact protection is possible in combination with Minicell. This product is one part of the complete configuration.
