Siemens

SINAMICS S120 BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ OUTPUT: DC 600V,...

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 108,02 €
Hind kehtib kuni 24.12.25
EAN: 4034106439880
MPN: 6SL3130-1TE22-0AA0
Karp: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SINAMICS S120 BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ OUTPUT: DC 600V, 34 A, 20KW
Bränd Siemens
Kategooriad Accessories/spare parts for frequency controller
Päritoluriik DE
Harmoneeritud süsteemi kood 8504 4082 00
Accessory No
Spare part No

Pakendamise üksikasjad

Pakkimistase 1 4034106439880

Kirjeldus

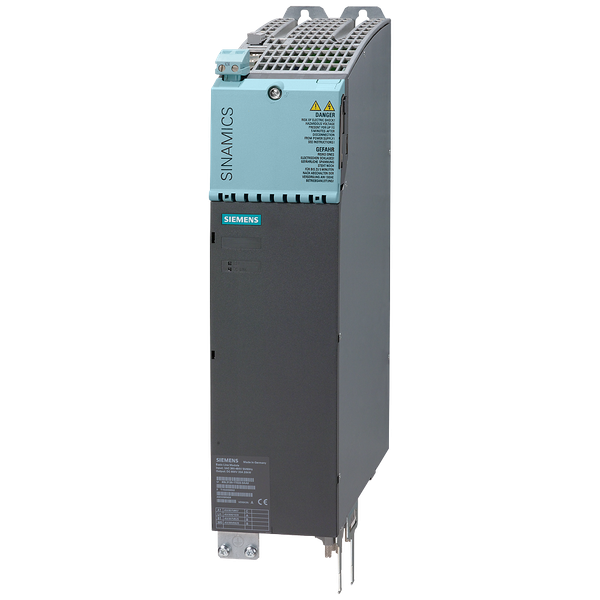

SINAMICS S120 BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ OUTPUT: DC 600V, 34 A, 20KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE Basic Line Module SINAMICS Basic Line Module in booksize format for applications with little or no surplus braking energy for the SINAMICS S120 drive system. The Basic Line Modules are compact line infeeds for two-quadrant operation. They are used when no energy is fed back into the network. If surplus energy is created, this is reduced via a braking module (braking chopper) using braking resistance. The Basic Line Modules are space-saving and feature an internal air-cooler and a high degree of efficiency. The DC link voltage is directly derived from the 3-phase line voltage via a 6-pulse bridge circuit. The module receives its control information via DRIVE-CLiQ from the CU320-2 Control Unit. The Basic Line Module covers the three-phase voltage range from 380 V up to 480 V 3AC. For the module, a shield connection plate, a DC link infeed adapter and a DC link adapter are available. SINAMICS – the seamless drive family for every application area.
