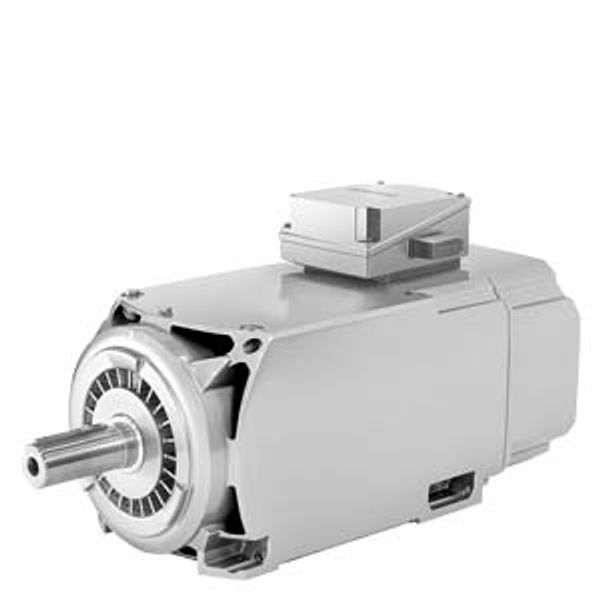

SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936...1PH8226-1DB05-2BA1 image 1
Siemens

SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936...1PH8226-1DB05-2BA1

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
19 395,54 €
Hind kehtib kuni 24.12.25
EAN: 0195125093584
MPN: 1PH8226-1DB05-2BA1
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936...1PH8226-1DB05-2BA1
Bränd Siemens
Kategooriad Standard Electric Motors

Pakendamise üksikasjad

Pakkimistase 1 0195125093584

Kirjeldus

SIMOTICS M compact asynchronous motor 400 r/min, 39.2 kW, 936 Nm, 112 A 264 V 500 r/min, 49 kW, 936 Nm, 110 A, 330 V 600 r/min, 59 kW, 939 Nm, 110 A, 395 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM V15 WITH FLANGE A550 SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
