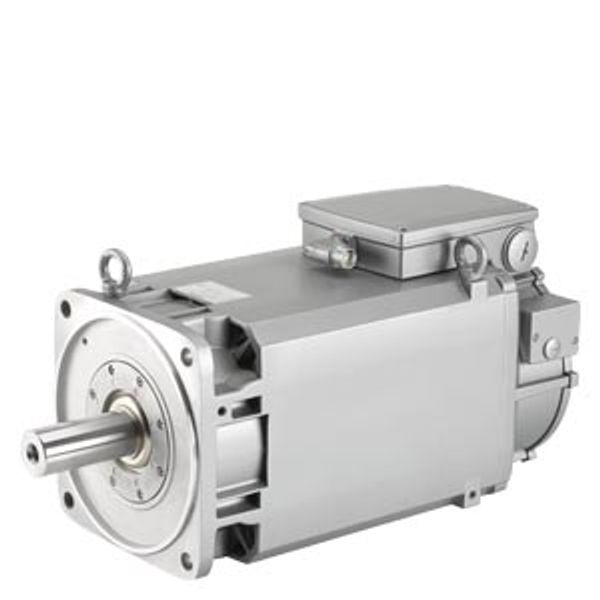

SIMOTICS M compact asynchronous motor 1500 r/min 7 kW 45...1PH8105-1DF02-1BA1 image 1
Siemens

SIMOTICS M compact asynchronous motor 1500 r/min 7 kW 45...1PH8105-1DF02-1BA1

Ainult telli
Hind (ilma KM-ta):
4 107,39 €
Hind kehtib kuni 24.12.25
EAN: 0804766182594
MPN: 1PH8105-1DF02-1BA1
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SIMOTICS M compact asynchronous motor 1500 r/min 7 kW 45...1PH8105-1DF02-1BA1
Bränd Siemens
Kategooriad Standard Electric Motors

Pakendamise üksikasjad

Pakkimistase 1 0804766182594

Kirjeldus

SIMOTICS M compact asynchronous motor 1500 r/min 7 kW 45 Nm 17.5 A 348 V 1750 r/min 8 kW 44 Nm 17.5 A 400 V 2000 r/min 9 kW 43 Nm 17 A 453 V 2200 r/min 9.9 kW 43 Nm 17 A 485 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
