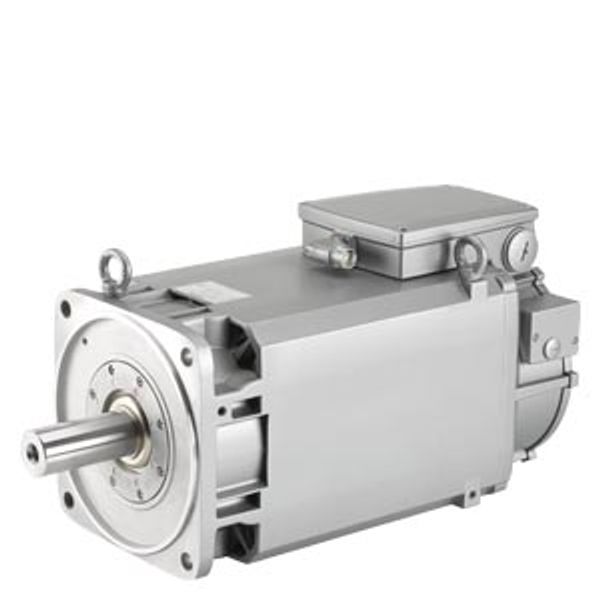

SIMOTICS M compact asynchronous motor 1500 r/min 3.7 kW 24 image 1
Siemens

SIMOTICS M compact asynchronous motor 1500 r/min 3.7 kW 24

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
3 664,07 €
Hind kehtib kuni 24.12.25
EAN: 0195125287020
MPN: 1PH8101-1DF00-2BA1
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SIMOTICS M compact asynchronous motor 1500 r/min 3.7 kW 24
Bränd Siemens
Kategooriad Standard Electric Motors

Pakendamise üksikasjad

Pakkimistase 1 0195125287020

Kirjeldus

SIMOTICS M compact asynchronous motor 1500 r/min 3.7 kW 24 Nm 12.5 A 265 V 1750 r/min 4.3 kW 23 Nm 12.5 A 304 V 2000 r/min 4.7 kW 22 Nm 12.5 A 343 V 2200 r/min 5.1 kW 22 Nm 12.5 A 363 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
