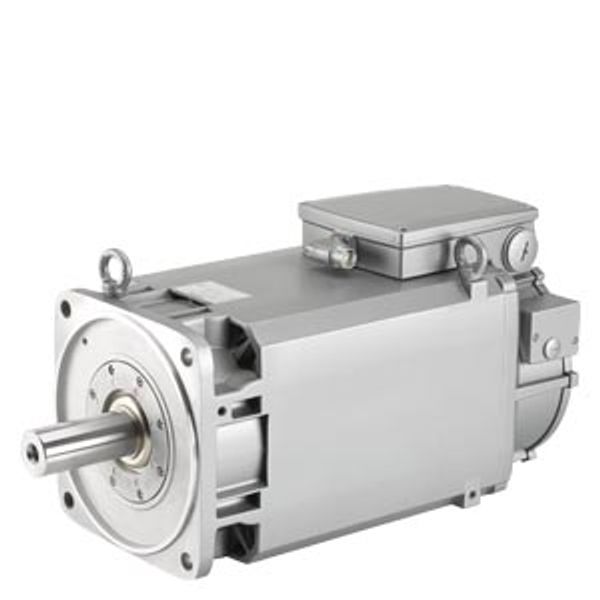

SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140 image 1
Siemens

SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
4 929,37 €
Hind kehtib kuni 24.12.25
EAN: 0195125052185
MPN: 1PH8137-1DF02-1BA1
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140
Bränd Siemens
Kategooriad Standard Electric Motors

Pakendamise üksikasjad

Pakkimistase 1 0195125052185

Kirjeldus

SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140 Nm 56 A 308 V 1750 r/min 25 kW 136 Nm 56 A 352 V 2000 r/min 28 kW 134 Nm 55 A 401 V 2200 r/min 30 kW 130 Nm 53 A 440 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
