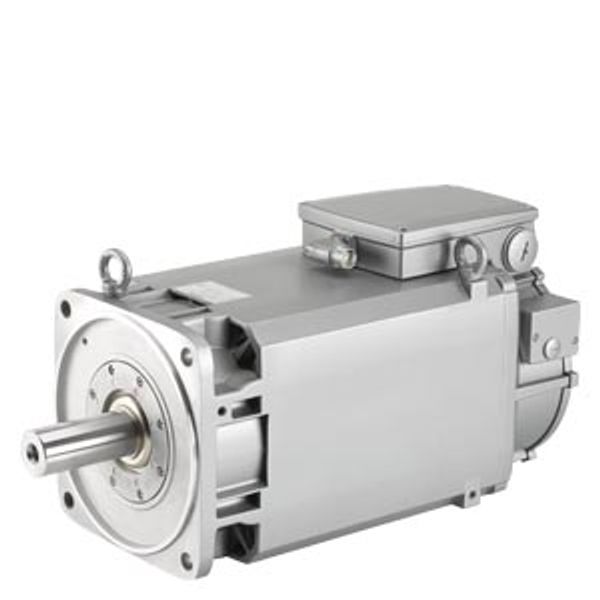

SIMOTICS M compact asynchronous motor 1500 r/min 2.8 kW 17.8 Nm 1PH8083-1SF02-0LA1 image 1
Siemens

SIMOTICS M compact asynchronous motor 1500 r/min 2.8 kW 17.8 Nm 1PH8083-1SF02-0LA1

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
5 464,32 €
Hind kehtib kuni 24.12.25
EAN: 0804766234972
MPN: 1PH8083-1SF02-0LA1
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi SIMOTICS M compact asynchronous motor 1500 r/min 2.8 kW 17.8 Nm 1PH8083-1SF02-0LA1
Bränd Siemens
Kategooriad Standard Electric Motors

Pakendamise üksikasjad

Pakkimistase 1 0804766234972

Kirjeldus

SIMOTICS M compact asynchronous motor 1500 r/min 2.8 kW 17.8 Nm 7.5 A 346 V 1750 r/min 3.3 kW 18 Nm 7.5 A 398 V 2000 r/min 3.7 kW 17.7 Nm 7.6 A 447 V 2200 r/min 4.1 kW 17.8 Nm 7.6 A 480 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 19-bit Without commutation position (encoder IN19DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
