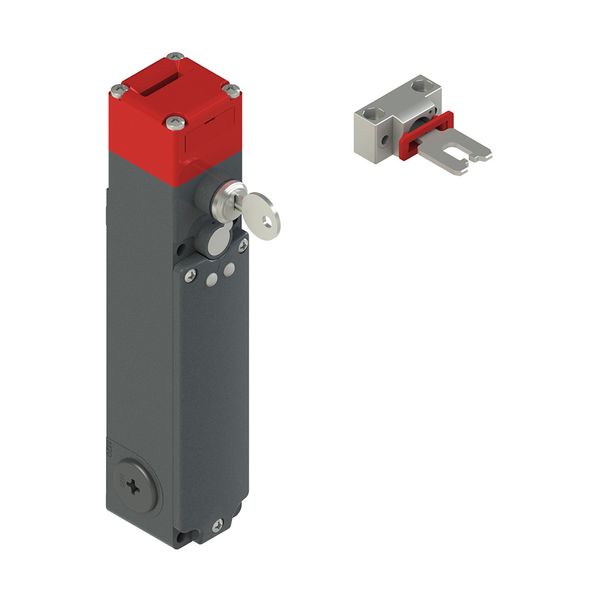

FG series safety switch with separate actuator with lock image 1
Pizzato Elettrica

FG series safety switch with separate actuator with lock

Ainult telli
Hind (ilma KM-ta):
142,44 €
Hind kehtib kuni 31.12.25
EAN: 8018851191732
MPN: FG 60GD5D1Z-F28
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 2-4 weeks

Technical Information

Toote seisukord Uus
Tootja nimi FG series safety switch with separate actuator with lock
Bränd Pizzato Elettrica
Kategooriad Position Switches
Sulgumisjõud 3000 N
Koos abivabastiga Yes

Pakendamise üksikasjad

Pakkimistase 1 8018851191732

Allalaadimised

Toote andmeleht Tehniline käsiraamat

Kirjeldus

FG series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Working method: D working method, locked actuator with de-energized solenoid, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 2NC moved by actuator and 2NC moved by solenoid, Head: Rotating head with lock auxiliary release device, Power: 120 Vac/dc, LED: Without LED, Actuator: Complete with universal actuator VF KEYF28, Positive opening: Yes.
