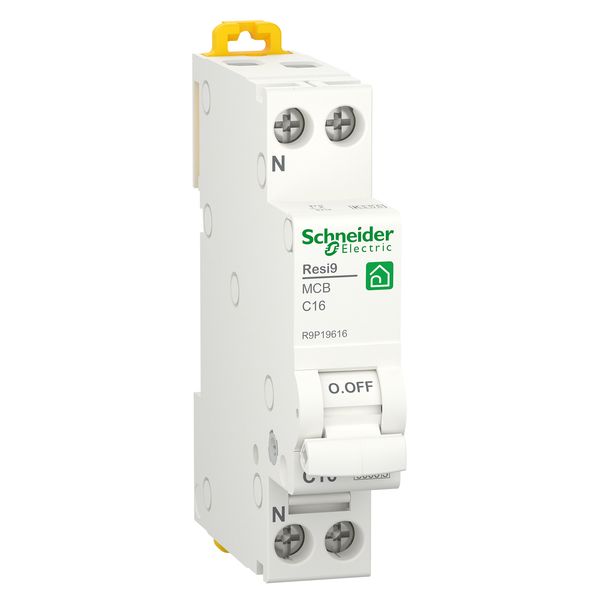

RESI9 1P+N C16 6KA
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | MCB Resi9 1P+N C16 6kA |
| Bränd | Schneider Electric |
| Kategooriad |
Kaitselülitid 16A
|
| Päritoluriik* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Tunnusvool | 16 A |
| Tunnuspinge | 230 V |
| Vabasti tunnusjoon | C |
| Laius mooduli arvudes | 1 |
| Pooluste arv (kokku) | 2 |
| Lühisvoolu tunnuslahutusvõime Icn standardi EN 60898 järgi pingel 230 V | 6 kA |
Pakendamise üksikasjad
| Pakkimistase 1 | 3606481904973 |
Muud tehnilised andmed
| Pinge liik | AC |
| Sisseehitussügavus | 44 mm |
| Sagedus | 50-60 Hz |
| Isolatsiooni nimipinge Ui | 500 V |
| Voolupiirangu klass | 3 |
| Liigpinge kategooria | 3 |
| Saasteaste | 2 |
| Kaitseaste (IP) | IP20 |
| Kaitstud pooluste arv | 1 |
| Samaaegselt lülitatakse N-neutraaljuhti | Yes |
| Ühendatava juhi ristlõige, massiivsoonega | 1-25 mm² |
| Ühendatava juhi ristlõige, mitmekiuline | 1-16 mm² |
| Talitlusaegne ümbrustemperatuur | -25-60 °C |
| Lisaseadmed on võimalikud | No |
| Lühisvoolu tunnuslahutusvõime Icn standardi EN 60898 järgi pingel 400 V | 0 kA |
| Lühisvoolu tunnuslahutusvõime Icu standardi EN 60947-2 järgi pingel 230 V | 0 kA |
| Lühisvoolu tunnuslahutusvõime Icu standardi EN 60947-2 järgi pingel 400 V | 0 kA |
| Tunnus-impulsstaluvuspinge Uimp | 4 kV |
Kirjeldus
This Resi9 product is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 16A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The Resi9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 70.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.
