Safety luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
725,38 €
EAN: 9010299022431
MPN: 42186603
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | RESCLITE PROtect MSC ANT ECD WH IP65 - Safety luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik | DE |
| Harmoneeritud süsteemi kood | 9405 1140 00 |

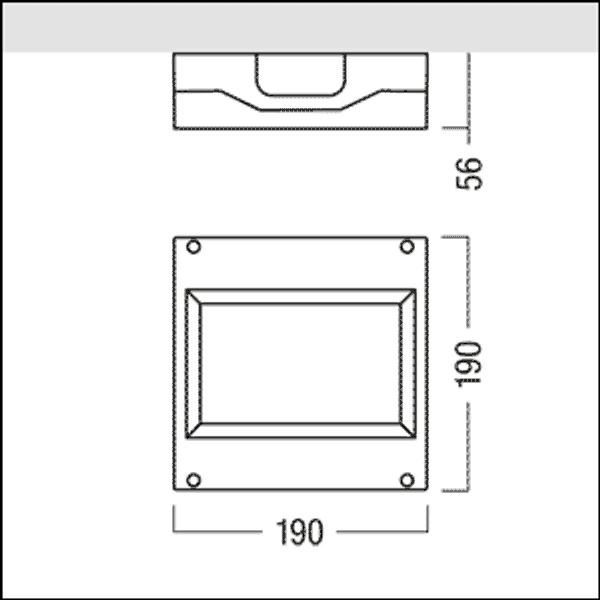

| Laius | 190 mm |
| Pikkus | 190 mm |
| Kõrgus/sügavus | 56 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK08 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP65 |
| Värvustemperatuur | 6500 K |
| Süsteemi võimsus | 3.5 W |
| Efektiivne valgusvoog | 417 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010299022431, 9010299022431 |
Muud tehnilised andmed
| Paigaldusviis | Pindpaigaldus/süvispaigaldus |
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 2.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | AC |
| Kere materjal | Alumiinium |
| Kattematerjal | Plast, läbipaistev |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.76 |
Allalaadimised
Kirjeldus
LED emergency luminaire for antipanic lighting with min. 0,5 lux acc. to EN 1838; 2 x 3 W LEDs, daylight white 6,500 K; lenses of polymethylmethacrylate; Ceiling surface-mounted luminaire; Screw mounting of the gear tray and IP65 cover; white (RAL 9016); weather-resistant diecast aluminium housing, powder-coated, with safety glass panel, sealed with silicone; suitable for the unprotected outdoor area (no rain cover necessary); Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained mode: -35 °C to +30 °C, non-maintained mode: -35 °C to +35 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC; Luminaire input power: 3.5 W; Non-maintained and maintained mode settable via the central battery system; SC1; Plug-in terminals for through-wiring up to 2.5 mm²; Impact strength: IK08; Room height 2.5 to 6 m; Dimensions: 190 x 190 x 56 mm; weight: 2 kg; ball-proof; IFS (International Food Standard)-certified; holder (ordered separately) for lateral cable entry (article code: 59010606)
Varuosa
5037319381501
