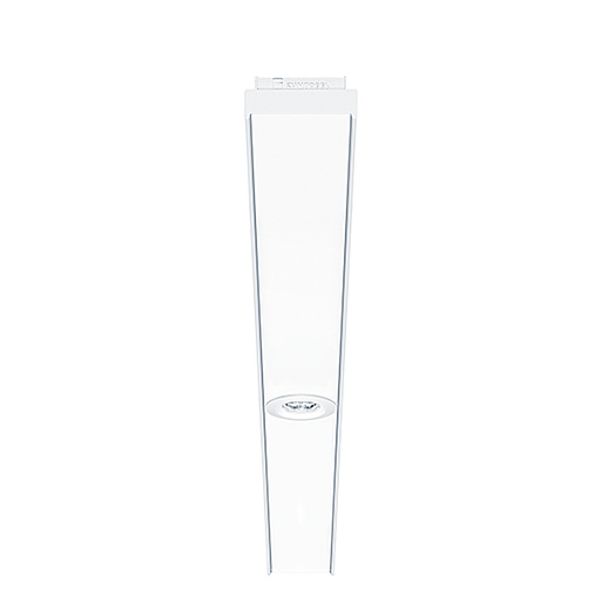

Safety luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 5037319376996
MPN: 42186058
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | RESCLITE PRO TRINOS ANT ECP WH - Safety luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik | RS |
| Harmoneeritud süsteemi kood | 9405 6180 00 |
| Laius | 85 mm |
| Pikkus | 500 mm |
| Kõrgus/sügavus | 62 mm |
| Lamp | LED, mittevahetatav |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP20 |
| Süsteemi võimsus | 3.8 W |
| Efektiivne valgusvoog | 228 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 5037319376996, 5037319376996 |
Muud tehnilised andmed
| Kaitseklass | I |
| Lambipesa | Puudub |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | AC |
| Kere materjal | Teras |
| Kattematerjal | Plast, läbipaistev |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Ending |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.65 |
Allalaadimised
Kirjeldus
LED emergency luminaire for antipanic lighting with min. 0,5 lux acc. to EN 1838; Room height 2.2 to 7 m; 2 high power LEDs, neutral white 4,000 K; lens made of polycarbonate; optimum thermal management via heat sink; TRINOS module; Tool-free connection to TRINOS continuous row system; tool-free replacement of control unit; roll-formed sheet steel with polyester paint finish; housing colour white (close to RAL9016); Luminaire for central emergency light supply, for single monitoring of the luminaire via Powerline in connection with the eBox System, settable emergency light level; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained and non-maintained mode: -40 °C to +45 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC; Luminaire input power: 3.8 W (in maintained mode): Power in non-maintained mode: 0,3 W; Non-maintained and maintained mode settable via the central battery system; boost start function for faster orientation in emergencies thanks to higher illuminance levels at the start of emergency operation

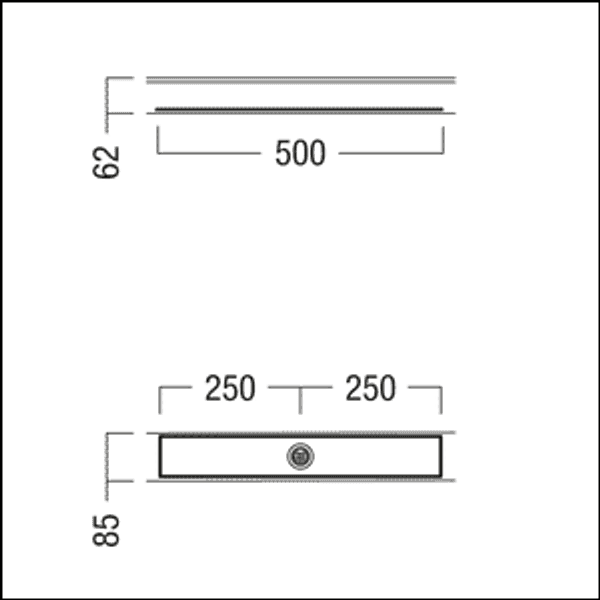

; IP20; SC1; Leuchte halogenfrei und silikonfrei verdrahtet. Permissible for use in environments where the deposition of conductive dust on the luminaire can be expected (EN 60598-2-24); Impact strength: ; Dimensions: 500 x 85 x 62 mm; weight: 0.8 kg; Protection rating IP65 (in installed state)
