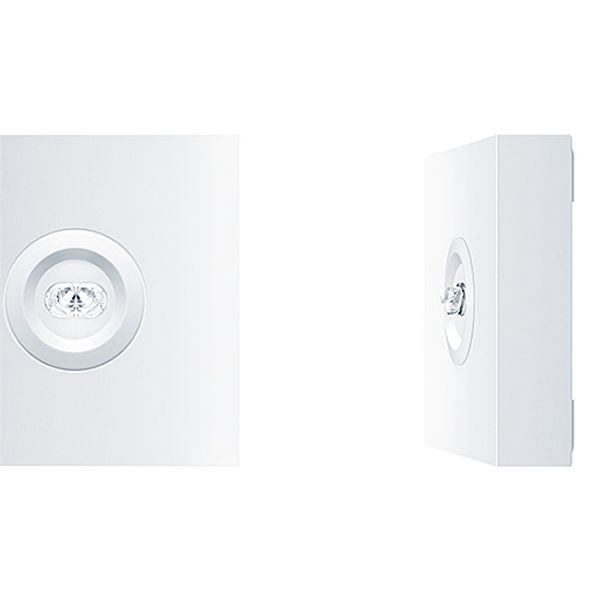

Safety luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 9010299213693
MPN: 42934342
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | RESCLITE PRO MSW ESCW ELP WH - Safety luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik | RS |
| Harmoneeritud süsteemi kood | 9405 6180 00 |

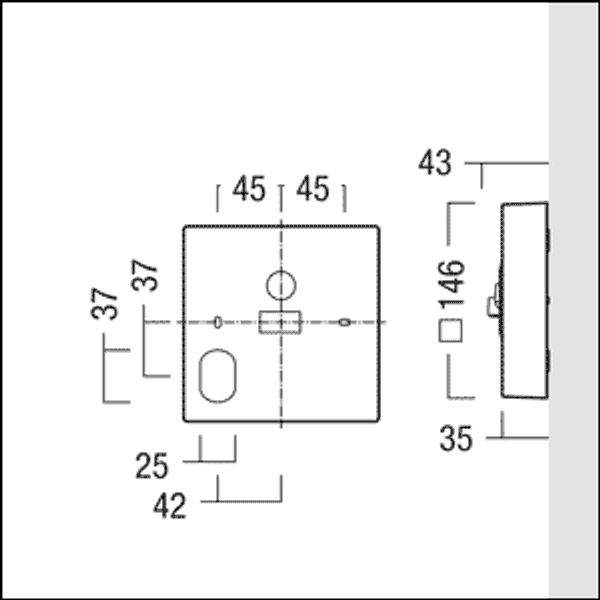

| Laius | 146 mm |
| Pikkus | 146 mm |
| Kõrgus/sügavus | 35 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK06 |
| Nimipinge | 48 V |
| Kaitseaste (IP) | IP40 |
| Süsteemi võimsus | 3.2 W |
| Efektiivne valgusvoog | 336 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010299213693, 9010299213693 |
Muud tehnilised andmed
| Paigaldusviis | Pindpaigaldus/süvispaigaldus |
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 2.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | DC |
| Kere materjal | Alumiinium |
| Kattematerjal | Plast, läbipaistev |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Exchangeable control gear | No |
| Sisseehitatud kõrgus/sügavus | 39 mm |
| Võimsustegur | 1 |
Allalaadimised
Kirjeldus
LED emergency luminaire for wall-mounted escape route lighting with min. 1 lux compliant to EN 1838; Room height 2.2 to 8 m; 2 high power LEDs, neutral white 4,000 K; lens made of polycarbonate; optimum thermal management via heat sink; wall surface-mounted luminaire; Screw mounting of the gear tray, tool-free quick mounting of the cover; Cover ring made of diecast aluminium, powder-coated; housing colour white (close to RAL9016); Galvanized sheet steel gear tray; Luminaire for central emergency power supply with 48V DC, for single monitoring of the luminaire via Powerline in connection with the nBox System, settable emergency light level; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing alternatively also optically possible; Maintained and non-maintained mode: -30 °C to +40 °C; power supply: 48 V DC (FELV); Luminaire input power: 3.2 W (in maintained mode): Power in non-maintained mode: 0,4 W; Non-maintained and maintained mode settable via the nBox; IP40; SC1; Luminaire wired with halogen-free and silicone-free leads; Plug-in terminals for through-wiring up to 2.5 mm²; Impact strength: IK06; Dimensions: 146 x 146 x 35 mm; weight: 0.6 kg; Luminaire with D symbol (for use in environments in which no unusual accumulation of dust is expected)
