RAB 1L35-830 WPC HF/R MAS CL2 6K 900 ANT - LED bollard
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 9010299056672
MPN: 96632087
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | RAB 1L35-830 WPC HF/R MAS CL2 6K 900 ANT - LED bollard |
| Bränd | Thorn |
| Kategooriad |
Tänava- ja pargivalgustid
|
| Päritoluriik | RS |
| Laius | 220 mm |
| Värviesitusindeks | 80-89 (klass 1B) |
| Pikkus | 173 mm |
| Kõrgus/sügavus | 900 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK10 |
| Nimipinge | 230-240 V |
| Kaitseaste (IP) | IP66 |
| Värvustemperatuur | 3000 K |
| Süsteemi võimsus | 15 W |
| Efektiivne valgusvoog | 658 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010299056672 |
Muud tehnilised andmed
| Kaitseklass | II |
| Lambipesa | Puudub |
| Koos alusplaadiga | No |
| Pinge liik | AC |
| Liikumisanduriga | No |
| Juhtliidese tüüp | LED-valgusti voolujuhtimisega seadis |
| Valgustusanduriga | No |
| Valgusjaotus | Otsene |
| Valgusjaotus | Asümmeetriline |
| Lambiga | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Sisaldab juhtseadist | Yes |
| Valguse värvus | Valge |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | Ei |
| Exchangeable control gear | Yes |
Allalaadimised
Kirjeldus

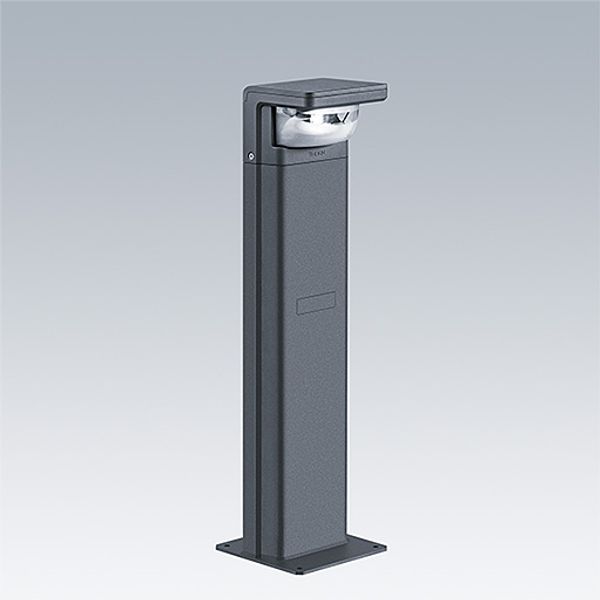

A flange mounted LED bollard of 900mm height, incorporating Thorn's Flat beam® technology. 1 LED driven at 350mA. LED driver included. Class II electrical, IP66, IK10. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stabilised polycarbonate, semi-frosted. Fasteners: stainless steel. Configured as motion detection master with concealed integral sensor and powerline control. Pre-set corridor function 20-100% for 5 minutes. Detection radius 5m. Complete with 3000K LED._x000D_
_x000D_
6kV surge protection as standard. 200mm x 200mm fixing centres, bolts not included._x000D_
_x000D_
Dimensions: 173 x 220 x 900 mm_x000D_
Luminaire input power: 15 W_x000D_
Luminaire luminous flux: 658 lm_x000D_
Luminaire efficacy: 44 lm/W_x000D_
Weight: 8.51 kg
