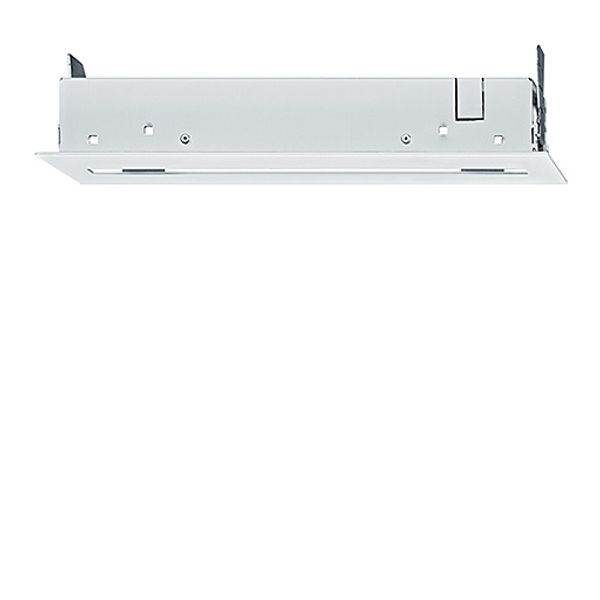

Escape sign luminaire
Ainult telli
Hind (ilma KM-ta):
432,62 €
EAN: 5037319374695
MPN: 42186016
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | PURESIGN/COMSIGN 150 P MRC E1D SR - Escape sign luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik* | RS |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 9405 6180 00 |
| Laius | 90 mm |
| Pikkus | 346 mm |
| Kõrgus/sügavus | 78 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP40 |
| Süsteemi võimsus | 6.6 W |
| Efektiivne valgusvoog | 225 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 5037319374695, 5037319374695 |
Muud tehnilised andmed
| Paigaldusviis | Sisseehitatud |
| Kaitseklass | I |
| Lambipesa | Puudub |
| Juhi ristlõige | 1.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Hõbedane |
| Pinge liik | AC |
| Laius | 76 mm |
| Kere materjal | Alumiinium |
| Pikkus | 330 mm |
| Lambiga | No |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Sisseehitatud kõrgus/sügavus | 80 mm |
| Võimsustegur | 0.8 |
Allalaadimised
Videos
Kirjeldus
LED Escape sign luminaire; Luminaire with local battery supply for 1 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; ceiling recessed; housing made of sheet steel, silver (similar to RAL 7035), powder coated; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; luminaire easy to install. Zero maintenance thanks to LED technology; plug-in terminals 2.5 mm², through-wiring possible for 1.5 mm²; Luminaire input power: 6.6 W, protection class: IP40, class of protection: SC1; Impact strength: IK03; Non-maintained and maintained mode settable via jumper and NFC interface, Maintained and non-maintained mode: +5 °C to +30 °C; power supply: 220-240 V AC (+/- 10 %), 50-60 Hz, ; dimensions of luminaire including escape sign: 346 x 90 x 78 mm; weight: 1.29 kg; Luminaire wired with halogen-free leads; Robust, integrated battery with 3-year warranty. Valid according to terms of the manufacturer's warranty, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_EN.pdf ; Battery warranty invalid if installation takes place three (3) months after delivery EXW (Incoterms 2010)
