Escape sign luminaire
Ainult telli
Hind (ilma KM-ta):
326,11 €
EAN: 5037319374787
MPN: 42186023
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | PURESIGN 150 P MSW ECD ERI WH - Escape sign luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik* | RS |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 9405 6180 00 |
| Laius | 130 mm |
| Pikkus | 227 mm |
| Kõrgus/sügavus | 27 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP42 |
| Süsteemi võimsus | 6.2 W |
| Efektiivne valgusvoog | 60 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 5037319374787, 5037319374787 |
Muud tehnilised andmed
| Paigaldusviis | Seinale paigaldatav |
| Kaitseklass | II |
| Lambipesa | Puudub |
| Juhi ristlõige | 1.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | AC |
| Kere materjal | Alumiinium |
| Lambiga | No |
| Tulekindlus "D" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.77 |
Allalaadimised
Videos
Kirjeldus
LED Escape sign luminaire; Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level; wall mounted; housing made of polycarbonate, white (RAL 9016), injection moulded; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; luminaire easy to install. Zero maintenance thanks to LED technology; plug-in terminals 2.5 mm², through-wiring possible for 1.5 mm²; Luminaire input power: 6.2 W, protection class: IP42, class of protection: SC2; Impact strength: IK03; non-maintained and maintained mode possible, Maintained and non-maintained mode: -40 °C to +45 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC, ; dimensions of luminaire including escape sign: 227 x 130 x 27 mm; weight: 0.38 kg; Luminaire wired with halogen-free leads; max. line length from emergency power source to last luminaire: 300 m; Luminaire with D symbol (for use in environments in which no unusual accumulation of dust is expected);
Varuosa
Ainult telli
Pole saadaval
Thorn

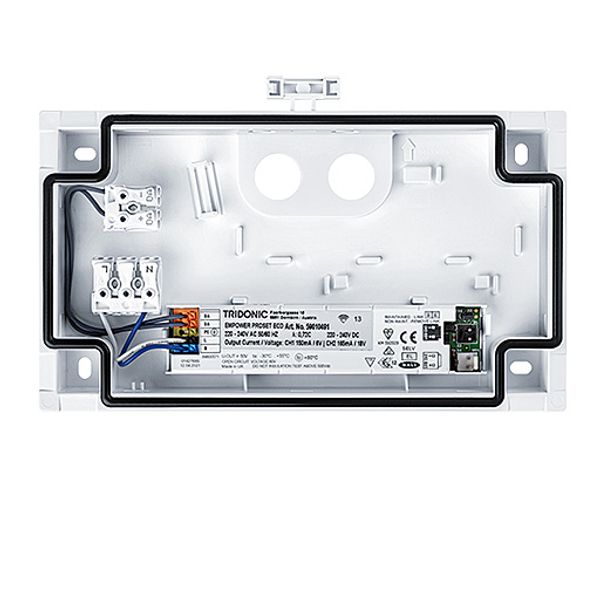

EMpower PROset ECD - Control gear
N/A
EAN: 5037319381501
MPN: 59009272
Pakend: 1
