Escape sign luminaire
Ainult telli
Hind (ilma KM-ta):
391,99 €
EAN: 9010299103123
MPN: 42186871
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | PURESIGN 150 P MSW E8D WH - Escape sign luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Avariivalgustid
|
| Päritoluriik* | RS |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 9405 6180 00 |
| Laius | 130 mm |
| Pikkus | 227 mm |
| Kõrgus/sügavus | 27 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP42 |
| Süsteemi võimsus | 6.8 W |
| Efektiivne valgusvoog | 60 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010299103123, 9010299103123 |
Muud tehnilised andmed
| Paigaldusviis | Seinale paigaldatav |
| Kaitseklass | II |
| Lambipesa | Puudub |
| Juhi ristlõige | 1.5 mm² |
| Ühenduse liik | Muul viisil |
| Kere värvus | Valge |
| Pinge liik | AC |
| Kere materjal | Alumiinium |
| Lambiga | No |
| Tulekindlus "D" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Konstantse valgusvoo juhtimine | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Võimsustegur | 0.8 |
Allalaadimised
Ohutusandmeleht
REACH süvalink
CE DOC deklaratsioon (CE vastavusdeklaratsioon)
RoHS deklaratsioon
Müügibrošüür
Videos
Kirjeldus

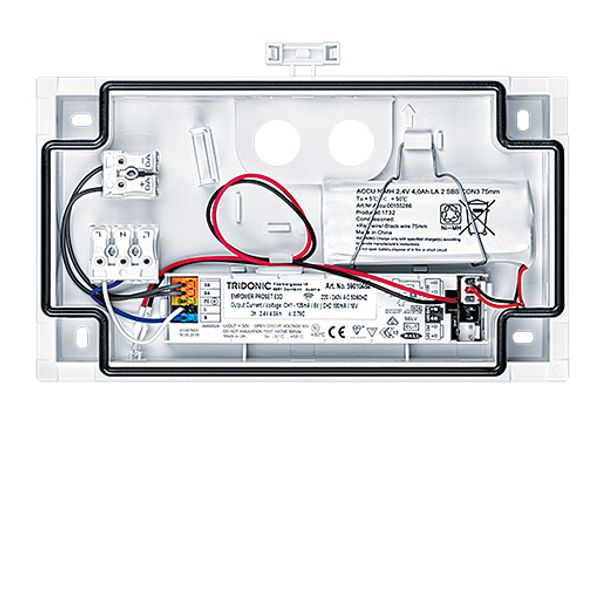

LED Escape sign luminaire; Luminaire with local battery supply for 8 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; wall mounted; housing made of polycarbonate, white (RAL 9016), injection moulded; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; luminaire easy to install. Zero maintenance thanks to LED technology; plug-in terminals 2.5 mm², through-wiring possible for 1.5 mm²; Luminaire input power: 6.8 W, protection class: IP42, class of protection: SC2; Impact strength: IK03; Non-maintained and maintained mode settable via jumper and NFC interface, Maintained and non-maintained mode: +5 °C to +30 °C; power supply: 220-240 V AC (+/- 10 %), 50-60 Hz, ; dimensions of luminaire including escape sign: 227 x 130 x 27 mm; weight: 0.5 kg; Luminaire wired with halogen-free leads; Luminaire with D symbol (for use in environments in which no unusual accumulation of dust is expected); Robust, integrated battery with 3-year warranty. Valid according to terms of the manufacturer's warranty, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_EN.pdf ; Battery warranty invalid if installation takes place three (3) months after delivery EXW (Incoterms 2010)
