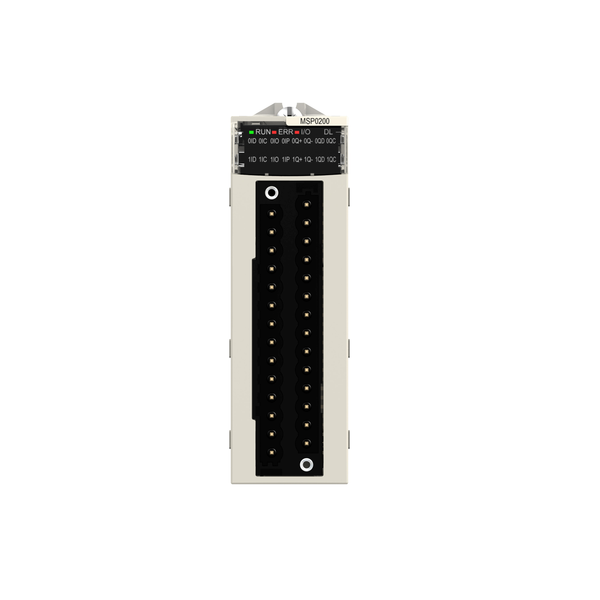

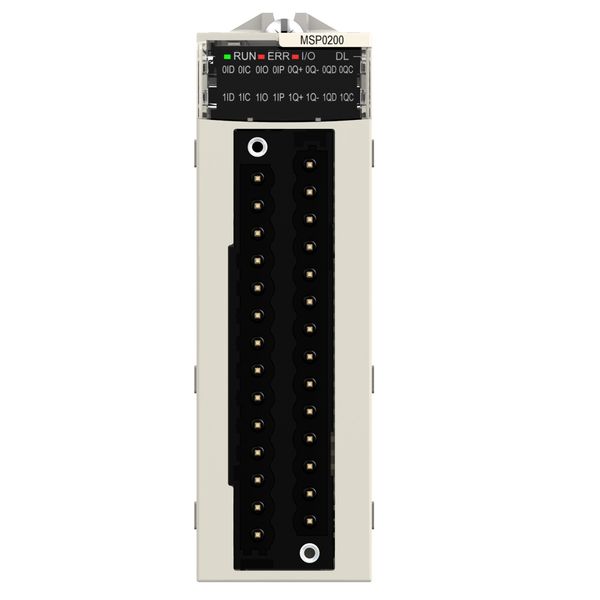

PTO module - 2 channels - 4 input - 24 V DC - 4.3 mA - 2 connectors 28 pins
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
880,22 €
EAN: 3595863998634
MPN: BMXMSP0200
Pakend: 1
Karp: 15
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | PTO module - 2 channels - 4 input - 24 V DC - 4.3 mA - 2 connectors 28 pins |
| Bränd | Schneider Electric |
| Kategooriad |
PLC Accessories
|
| Päritoluriik | FR |
| Funktsioon | PLC - Muud seadmed |
Pakendamise üksikasjad
| Pakkimistase 1 | 3595863998634 |
| Pakkimistase 2 | 3595863998638 |
Muud tehnilised andmed
| Pooluste arv | 0 |
| Pikkus | 0.1 m |
| Elektriühenduse tüüp, kontrolleripoolne | Muul viisil |
| Elektriühenduse tüüp, tööväljapoolne | Muul viisil |
| Sobib sisendkaardi kontrollerile | No |
| Sobib väljundkaardi kontrollerile | No |
| Sobib digitaalsignaalidele | No |
| Sobib analoogsignaalidele | No |
Allalaadimised
ECOP (Keskkonna hea tava kood)
EPD deklaratsioon (Keskkonnatoote deklaratsioon)
CE DOC deklaratsioon (CE vastavusdeklaratsioon)
Tehniline käsiraamat
Kirjeldus
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
