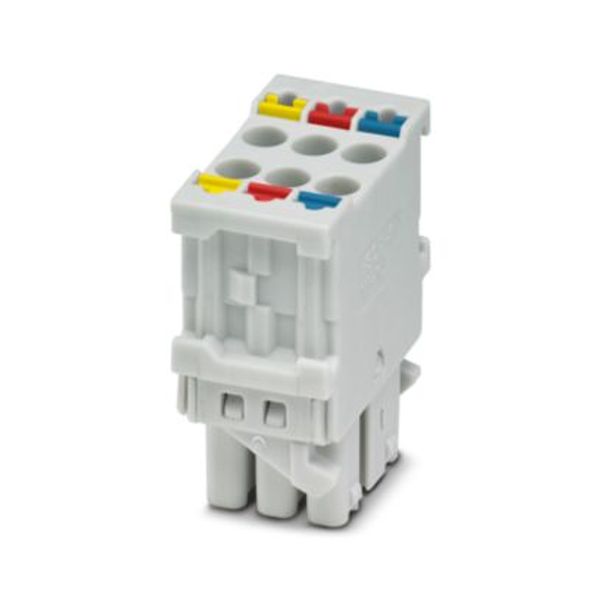

HSCP-SP 1,5-1U6-624/624-7035 - Printed-circuit board connector image 1
Phoenix Contact

HSCP-SP 1,5-1U6-624/624-7035 - Printed-circuit board connector

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 50
Hind (ilma KM-ta):
3,85 € tk kohta
Hind kehtib kuni 31.12.25
Vahesumma: 192,50 € MOQ: 50
EAN: 4063151976811
MPN: 1510185
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 2-4 weeks

Technical Information

Toote seisukord Uus
Tootja nimi HSCP-SP 1,5-1U6-624/624-7035 - Printed-circuit board connector
Bränd Phoenix Contact
Kategooriad Cable Connectors
Päritoluriik PL

Pakendamise üksikasjad

Pakkimistase 1 4063151976811

Kirjeldus

PCB connector, nominal cross section: 1.5 mm², color: light grey, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 2, number of positions: 6, number of connections: 6, product range: HSCP-SP 1,5-.., pitch: 3.45 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: HSC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard, Color of the spring levers: blue, red, yellow/blue, red, yellow
