Post-top luminaires Publisca P1 CLO (normal) Lens Anthracite around ET 11W 1100lm 70 rotationally sym. wide (RB6L) IP23 IK08 5 SDCM 6648040

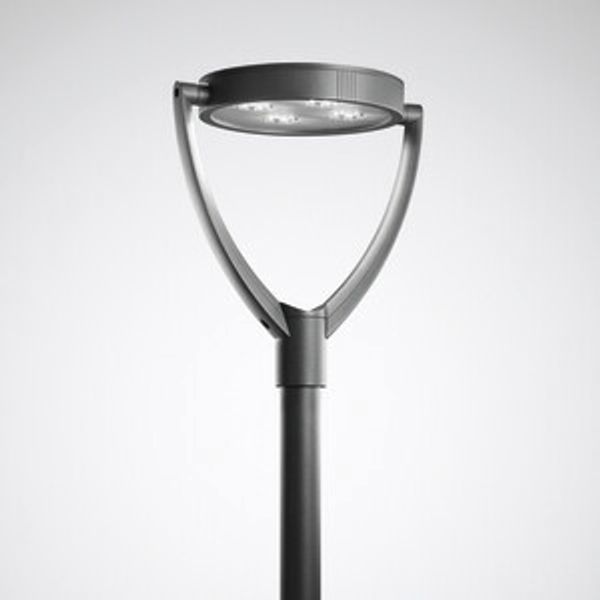

Decorative post-top luminaire with flat cover, Parabolic mast bracket. With an intelligent label for quick access to luminaire information by means of QR code. With self-regulating power reduction via integral evaluation electronics.Reduction of luminaire luminous flux to 50 % for a time period of 7 hours (-2 h/+5 h). The central point of the switch-on duration is defined new on a daily basis . Post-top luminaire for post spigot Ø 76 mm, Mast mounting via two stainless steel fixing screws in accordance with EN 60598-2-3. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetric wide light distribution. Optimised for horizontal positioning of luminaire body. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). With 2 LED modules. LED module consisting of four LEDs including optical system. Luminaire luminous flux 1100 lm, connected load 10,5 W, maximum luminous efficiency of luminaire 105 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Surface anthracite coated (DB 703). Sea weather-suitable coating on request. Inclination angle can be adjusted Adjustment is lockable in 10° steps between 0° and 90°. Cover of heat-treated non-laminated safety glass. Cover sealed in luminaire body. With a transmission value of > 98%. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP66. impact resistance level in accordance with IEC 62262: IK08. Protection rating of lamp compartment: IP66. Mast available upon request. Windage area fw 0,080 m2. Weight: 9,0 kg. Gear tray with all electrical components and LED modules mounted as upper luminaire enclosure. Removable after releasing four fixing screws of V2A. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
