Post-top luminaires 983 CLO (normal) Reflector Black ET 29W 2000lm asymmetric wide (AB) IP23 IK04 3 SDCM 6507640

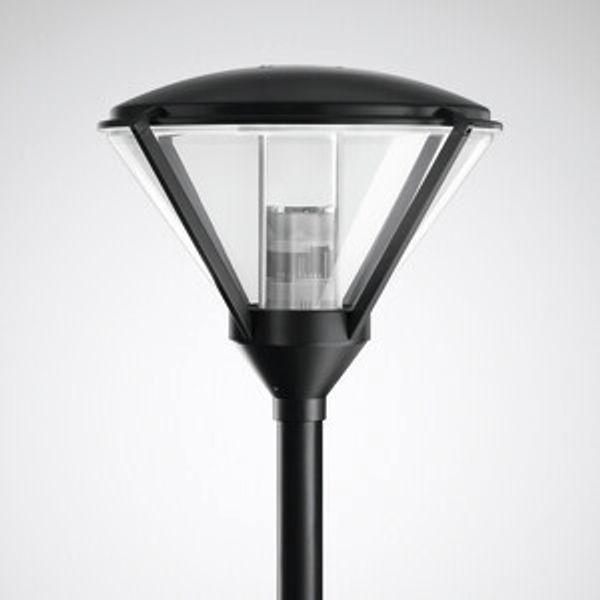

Decorative conical lantern for mast-top mounting.. With an intelligent label for quick access to luminaire information by means of QR code. With self-regulating power reduction via integral evaluation electronics.Reduction of luminaire luminous flux to 50 % for a time period of 7 hours (-2 h/+5 h). The central point of the switch-on duration is defined new on a daily basis . For post spigot Ø 76 mm. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. Optical system of highly specular anodised aluminium. With asymmetric wide light distribution. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 2000 lm, connected load 24 W, maximum luminous efficiency of luminaire 83 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant. Colour black (RAL 9005). Sea weather-suitable coating on request. Luminaire top white powder-coated on inside. Cover of highly impact-resistant PMMA with tapered form, clear. Luminaire cover in lock-in service position can be pushed upwards. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK04. Protection rating of lamp compartment: IP65. Mast available upon request. Windage area fw 0,360 m2. Weight: 7,6 kg. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Electrical block contains all electric components, can be replaced without tools. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
