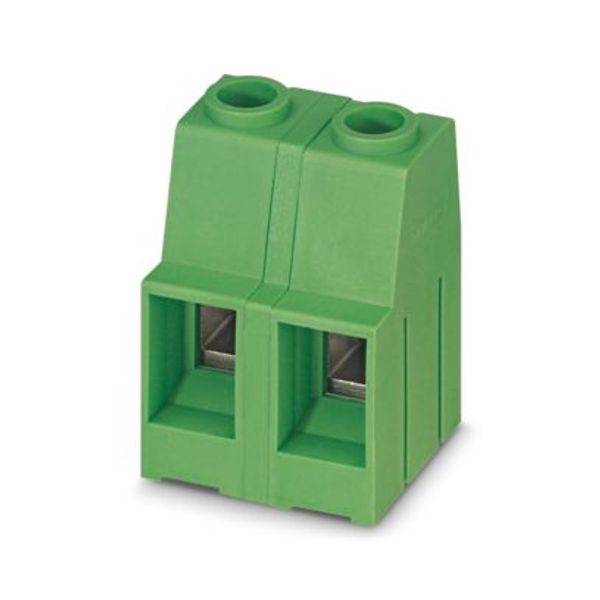

MKDSP 10 HV/ 2-12,7 T20L - PCB terminal block image 1
Phoenix Contact

MKDSP 10 HV/ 2-12,7 T20L - PCB terminal block

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1000
Hind (ilma KM-ta):
3,48 € tk kohta
Hind kehtib kuni 31.12.25
Vahesumma: 3 480,00 € MOQ: 1000
EAN: 4063151980436
MPN: 1517224
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 2-4 weeks

Technical Information

Toote seisukord Uus
Tootja nimi MKDSP 10 HV/ 2-12,7 T20L - PCB terminal block
Bränd Phoenix Contact
Kategooriad PCB Connectors & Terminals
Päritoluriik PL

Pakendamise üksikasjad

Pakkimistase 1 4063151980436

Kirjeldus

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of rows: 1, number of positions per row: 2, product range: MKDSP 10HV, pitch: 12.7 mm, connection method: Screw connection with tension sleeve, screw head form: T20L Slotted Torx®, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
