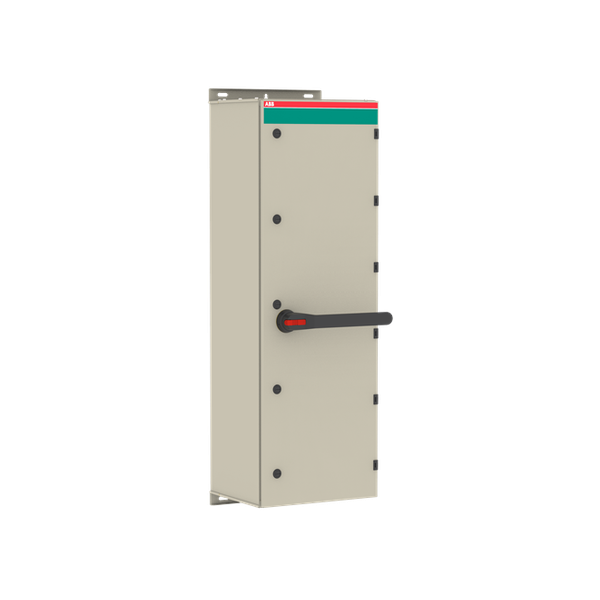

OT630KTRR3TZ EMC safety switch image 1
OT630KTRR3TZ EMC safety switch image 2
OT630KTRR3TZ EMC safety switch image 3
OT630KTRR3TZ EMC safety switch thumbnail 1
OT630KTRR3TZ EMC safety switch thumbnail 2
OT630KTRR3TZ EMC safety switch thumbnail 3
ABB

OT400DTRR3TZ EMC safety switch

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
2 956,79 € tk kohta
Hind kehtib kuni 31.12.30
EAN: 6417019168241
MPN: 1SCA022513R7880
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi OT630KTRR3TZ EMC safety switch
Bränd ABB
Kategooriad Lülitite lahklülitid
Päritoluriik FI
Harmoneeritud süsteemi kood 8536 3090 00
Pooluste arv 3

Pakendamise üksikasjad

Pakkimistase 1 6417019168241

Muud tehnilised andmed

Laius 400 mm
Kõrgus 1000 mm
Sügavus 275 mm
Lülitite arv 1

Allalaadimised

RoHS deklaratsioon REACH süvalink CE DOC deklaratsioon (CE vastavusdeklaratsioon) Toote andmeleht

Kirjeldus

EMC safety switch, 3-p. 415V AC23 570A, 315kW. Mounted auxiliary contact: 2NO1NC. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
