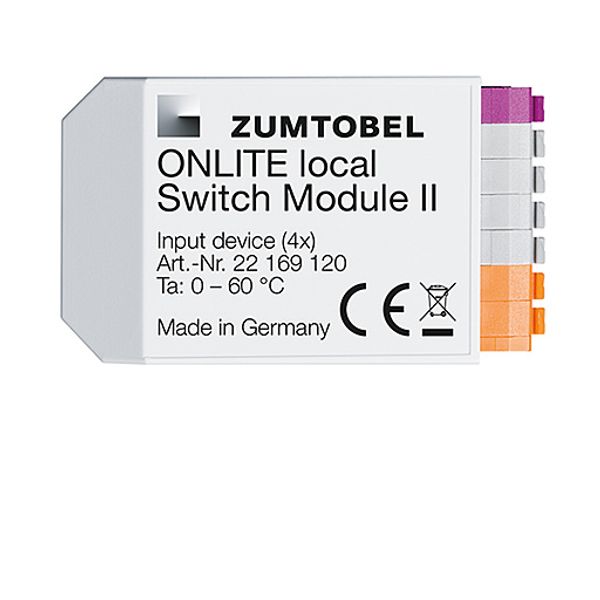

ONLITE local SWITCH MODULE II - DALI switch input device, 4x image 1
ONLITE local SWITCH MODULE II - DALI switch input device, 4x image 2
ONLITE local SWITCH MODULE II - DALI switch input device, 4x image 3
ONLITE local SWITCH MODULE II - DALI switch input device, 4x thumbnail 1
ONLITE local SWITCH MODULE II - DALI switch input device, 4x thumbnail 2
ONLITE local SWITCH MODULE II - DALI switch input device, 4x thumbnail 3
Zumtobel

DALI switch input device, 4x

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
250,25 €
Hind kehtib kuni 24.12.25
EAN: 9008709641747
MPN: 22169120
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi ONLITE local SWITCH MODULE II - DALI switch input device, 4x
Bränd Zumtobel
Kategooriad Valgustite avariiüksused
Päritoluriik DE
Harmoneeritud süsteemi kood 8536 5080 00
Kaitseklass II

Pakendamise üksikasjad

Pakkimistase 1 9008709641747, 9008709641747

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

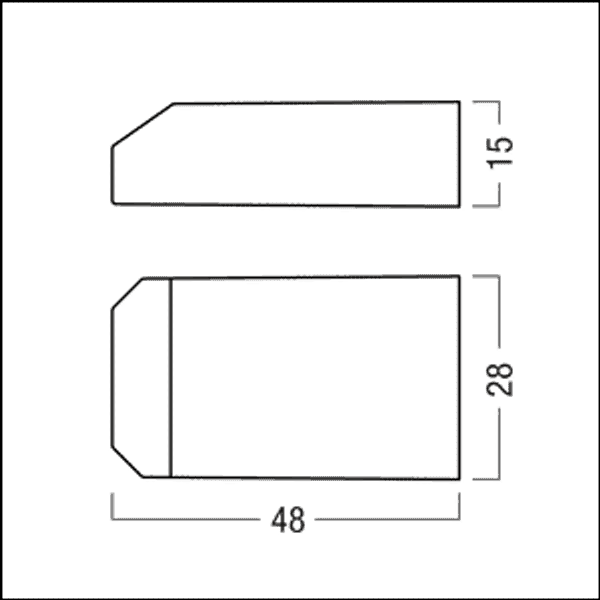

The ONLITE local Switch Module II is a DALI input device for independent switching of the four emergency lighting circuits of the SB 128 controller from maintained to non-maintained mode. Standard switches or timers with floating contacts can be used for switching the emergency lighting circuits or single luminaires in a circuit. This makes it possible to switch escape sign luminaires and emergency luminaires to non-maintained mode outside of operating times that due to relevant standards and regulations must be normally operated via maintained mode. This enables the service life to be significantly extended and power consumption to be significantly reduced. Supply is via the DALI control line connected at the terminals (no mains connection). Current consumption is max. 4 mA (2 DALI loads). The DALI input can withstand an external voltage of 230/240V. The device is intended for installing in conventional flush-fitting sockets behind the switch. Dimensions: 47.7 x 28.2 x 14.6 mm. Material: halogen-free, flame-retardant polycarbonate. Switches must be designed for at least 15 VDC and are connected to the device leads.
