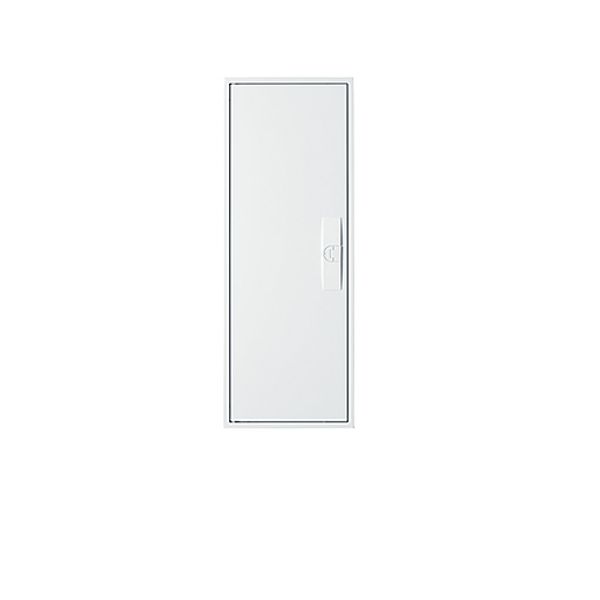

ONLITE central CPS U E00 FHW05 - Substation as per configuration image 1
ONLITE central CPS U E00 FHW05 - Substation as per configuration image 2
ONLITE central CPS U E00 FHW05 - Substation as per configuration image 3
ONLITE central CPS U E00 FHW05 - Substation as per configuration thumbnail 1
ONLITE central CPS U E00 FHW05 - Substation as per configuration thumbnail 2
ONLITE central CPS U E00 FHW05 - Substation as per configuration thumbnail 3
Zumtobel

Substation as per configuration

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
26 619,31 €
Hind kehtib kuni 24.12.25
EAN: 9008709056398
MPN: 22154691
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi ONLITE central CPS U E00 FHW05 - Substation as per configuration
Bränd Zumtobel
Kategooriad Valgustite avariiüksused
Päritoluriik DE
Harmoneeritud süsteemi kood 8537 1098 00
Kaitseklass I

Pakendamise üksikasjad

Pakkimistase 1 9008709056398, 9008709056398

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

Substation in E00 design for supplying and monitoring 230 V/220 V AC/DC emergency and escape sign luminaires as per EN 50171 for central power supply systems, with automatic test device in accordance with EN 62034. Can be fitted with up to 40 circuit modules with the function D-Dali individual luminaire monitoring, P-Profi individual luminaire detection or circuit monitoring. One circuit module, with 6.3A fuses and 870 VA power, is for one end circuit comprising up to 20 emergency or escape sign luminaires. The substation is fitted with an independent controller, 8 digital floating inputs, with an optional extra 8 available. Functions that can be selected for the UV sub-distribution units which are housed in the cabinet: Individual luminaire monitoring: Function D -> DALI single luminaire monitoring: with separate status and name display per luminaire in conjunction with standard DALI LED control units by means of 2-wire communication without additional monitoring module in the luminaire. Individual luminaire monitoring: Function P -> Profi-technology with individual luminaire detection and serial measurement Maintained light and non-maintained light in one circuit (mixed operation), the Profi SET 009 modules communicate via the mains input line to the system. Circuit monitoring: During the test the current is measured for each circuit. The output circuits can only be switched together. Wall-mounted cabinet type: CPS U E00 FHW05, Dimensions (HxWxD in mm): 800x300x161; Degree of protection: IP 20, Protection class: I, door hinge can be changed on site
