MSENS LC TEC-GP WH IP54 - Sensor movement - ambient light image 1
MSENS LC TEC-GP WH IP54 - Sensor movement - ambient light image 2
MSENS LC TEC-GP WH IP54 - Sensor movement - ambient light thumbnail 1
MSENS LC TEC-GP WH IP54 - Sensor movement - ambient light thumbnail 2
Zumtobel

Sensor movement - ambient light

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
422,74 €
Hind kehtib kuni 24.12.25
EAN: 9010757198159
MPN: 22172588
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi MSENS LC TEC-GP WH IP54 - Sensor movement - ambient light
Bränd Zumtobel
Kategooriad Valgusti tarvikud
Päritoluriik AT
Harmoneeritud süsteemi kood 9405 9900 00
Lisatarviku liik Liikumisandur

Pakendamise üksikasjad

Pakkimistase 1 9010757198159, 9010757198159

Allalaadimised

REACH süvalink RoHS deklaratsioon Müügibrošüür

Kirjeldus

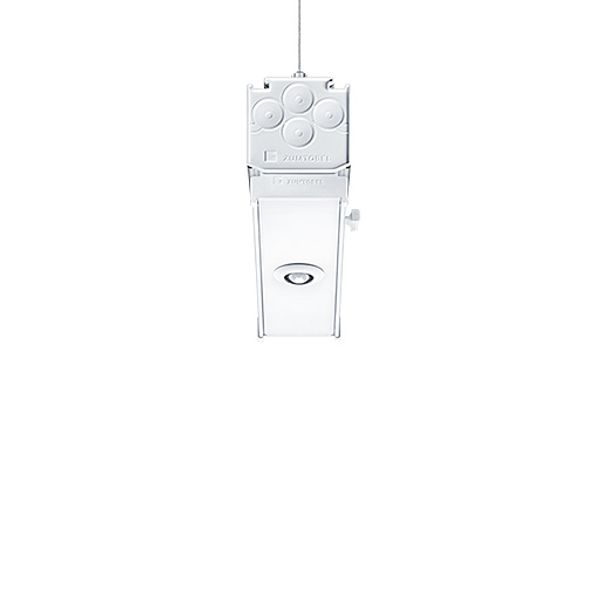

The DALI-2 Multi Sensor for motion detection and ambient light detection is perfect for industry, education and offices. It uses PIR technology for motion detection (DALI Part 303) and measures light (DALI Part 304) between 5 and 2000 lx as standard, with a minimum value of 0.5 lx. Compatible with all DALI-2 application controllers such as LITECOM DALI-2 and DIMLITE pro, and can also be combined with BC TEC-GP modules. The sensor requires 5 DALI loads (9 mA) and has a detection radius of 10 m at a mounting height of 3 m. Equipped with a PE sensor lens, a PS sensor housing and a sheet steel adapter, pre-painted in polyester lacquer finish in white. Shielding lenses to reduce the PIR detection range can be optionally ordered separately. Temperature range from -20°C to +50°C; protection rating: IP54; dimensions: 248x60x16 mm; weight approx. 0.35 kg.
