MS165-42B Manual Motor Starters
Ainult telli
Hind (ilma KM-ta):
228,08 €
tk kohta
EAN: 4013614521751
MPN: 1SAM451200R1015
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | MS165-42B Manual Motor Starter 30 ... 42 A |
| Bränd | ABB |
| Kategooriad |
Mootori kaitselülitid
|
| Harmoneeritud süsteemi kood | 8536 2010 00 |
| Nominaalne püsivool Iu | 42 A |
| Pooluste arv | 3 |
| Tunnus-talitluspinge | 250-690 V |
| Liigkoormuskaitse sättepiirkond | 30-42 A |
| Kaitseaste (IP) | IP20 |
| Nimi lahutusvõime lühisel Icu 400 V AC korral | 50 kA |
| Viivituseta lühisvabasti seadistuspiirkond | 630 A |
Pakendamise üksikasjad
| Pakkimistase 1 | 4013614521751 |
Muud tehnilised andmed
| Laius | 55 mm |
| Kõrgus | 142.65 mm |
| Sügavus | 122.1 mm |
| Tunnustalitlusvõimsus, AC-3, 400 V | 22 kW |
| Sisseehitatud abilülitiga | No |
| Sisseehitatud alapingevabastiga | No |
| Termokaitsega | Yes |
| Peaahela ühendusviis | Kruviühendus |
| Juhtelemendi liik | Pöördlüliti (pöördnupp) |
| Väljalülituspõhimõte | Termomagnetiline |
| Faasirikketundlik | Yes |
| Seadme ehitus | Komplektne seade korpuses |
Allalaadimised
Kirjeldus

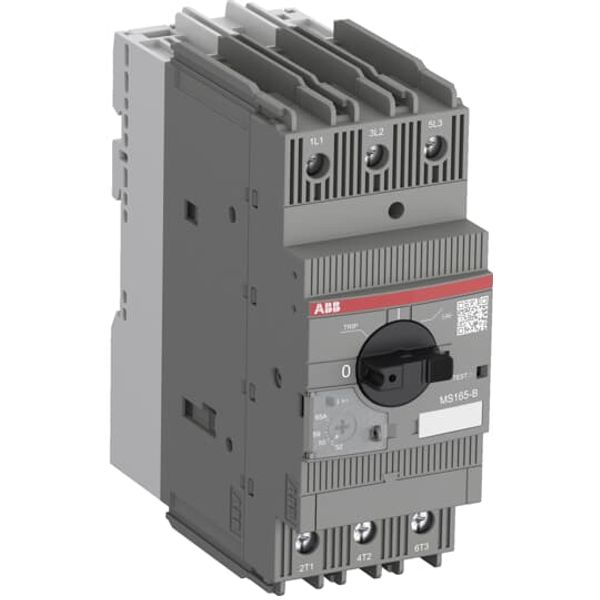

MS165-B is a compact and powerful range for motor protection up to 45 kW (400 V AC) / 80 A in width of 55 mm, complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the built-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS132-B / MS165-B range.
– designed in accordance to the applicable parts of IEC 60077 standard
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– usable according to European fire and smoke safety standard EN 45545-2
