Motion detector, KNX®, 4 channels, 32 m, IP54, for high ceilings, for
Ainult telli
Hind (ilma KM-ta):
216,44 €
EAN: 5413736340923
MPN: 350-41735
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
4-6 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | Motion detector, KNX®, 4 channels, 32 m, IP54, for high ceilings, for |
| Bränd | Niko |
| Kategooriad |
Bus System Devices (KNX/Modbus)
|
| Päritoluriik* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 8536 5080 00 |
| Mudel | Liikumisandur |
| Siinisüsteem KNX | Yes |
| Raadiosageduslik siinisüsteem | No |
| Siinisüsteem Powernet | No |
| Siiniühendusega | Yes |
| Siinisüsteem LON | No |
| Siinisüsteem KNX radio | No |
| Raadiosageduslik, kahesuunaline | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 5413736340923 |
Muud tehnilised andmed
| Paigaldusviis | Pinnapealne |
| Värvus | Valge |
| Pinnatöötlus | Muul viisil |
| Läbilöögikaitsega | No |
| Trepikoja järelevalve | No |
| Suurim edastusulatus külgedel | 16 m |
| Materjal | Plast |
| Tuvastatav läbimõõt põrandal | 32 m |
| Alajaama sisend | Yes |
| Õpetamisfunktsioon helendusreaktsioonile | No |
| Talitlusmooduse lüliti | No |
| Läbipaistev | Yes |
| Loomade tsooniga | No |
| Vähim sisselülitusaeg | 1 s |
| Suurim koormustsükkel | 15300 min |
| Seadistatav helendusreaktsioon | Yes |
| Iseõppiva väljalülitusviivitusega | No |
| Optimaalne paigalduskõrgus | 5 m |
| Sisseehitatud paigalduskarbi vähim sügavus | 27 mm |
| DALI-2 certified | No |
Allalaadimised
Kirjeldus

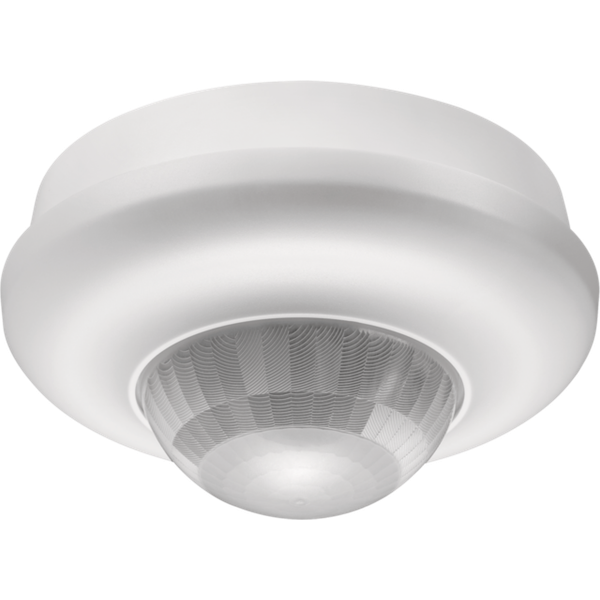

Motion detector with daylight control, 360°, KNX®, for surface-mounting on high ceilings. It can be easily mounted with sufficient cabling space and easily accessible terminals. Adjustable as standalone, master or secondary. To increase the detection range, a detector set as a master can be combined with one or more detectors set as secondary detectors. Has a large detection range of 16 to 32 m. You can quickly and easily set the parameters and functions using the ETS software. You can choose from different configuration methods with a decreasing degree of pre-programming: Basic, Optimisation or Advanced. 41-735 is suitable for conference rooms, hallways, lobbies .. with a floor-to-ceiling height over 4 m. The detector has 4 individual zones, of which 1 to 3 daylight controlled and 1 extra zone for separate on/off control. Suitable for KNX® bus system and can be combined with other KNX® components. With the (optional) IR remote control you can modify the local settings of the lux level
