Modular combined arrester for 1 pair BLITZDUCTORconnect w. fault indic

Name: Modular combined arrester for 1 pair BLITZDUCTORconnect w. fault indic
Brand: Dehn
Price: 106.800 EUR
Availability: PreOrder

Ainult telli

Hind (ilma KM-ta):

106,80 €

Hind kehtib kuni 24.12.25

EAN: 4013364405677

MPN: 927284

Pakend: 1

Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord	Uus
Tootja nimi	Modular combined arrester for 1 pair BLITZDUCTORconnect w. fault indic
Bränd	Dehn
Kategooriad	Surge Protection Devices (SPD)
Päritoluriik	DE
Harmoneeritud süsteemi kood	8536 3010 00
Suurim kestevpinge AC	25.4 V
Nimilahendusvool (8/20)	10 kA
Nimikoormusvool	0.5 A
Pingekaitsenivoo soonte vahel	65 V
Suurim kestevpinge DC	36 V
Kaitseaste (IP)	IP20
Nimipinge DC	24 V

Pakendamise üksikasjad

Pakkimistase 1

4013364405677, 4013364405677

Muud tehnilised andmed

Paigaldusviis	DIN-latt (paigaldusliist) 35 mm
Ühendus 1	Push-in terminal
Pikse impulssvool (10/350)	3 kA
Juhtide arv (ilma maanduseta)	2
Piirsagedus	3.5 MHz
Pingekaitsenivoo soone ja maa vahel	1100 V
Signaal seadme juures	Optiline
Ennetav termojuhtimine	Yes
Assembly width	6 mm
Signal disconnection	Yes
Earthing via	DIN-latt (paigaldusliist)

Allalaadimised

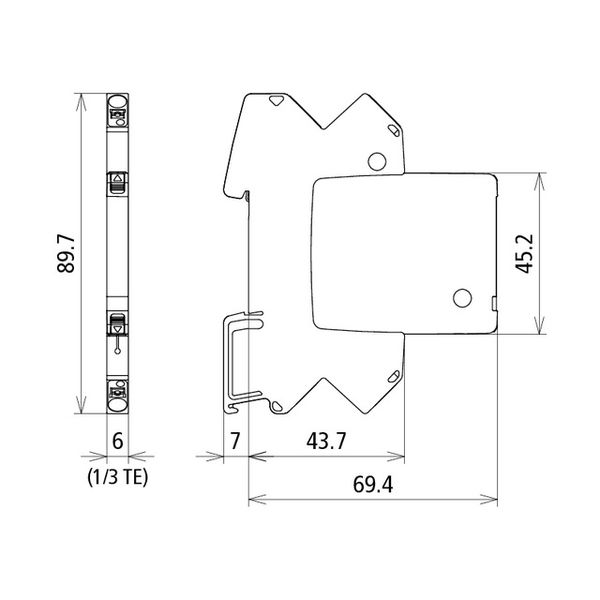

Toote andmeleht Mõõdetud joonis Skeem REACH süvalink

Kirjeldus

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground. With signal disconnection for maintenance purposes.
