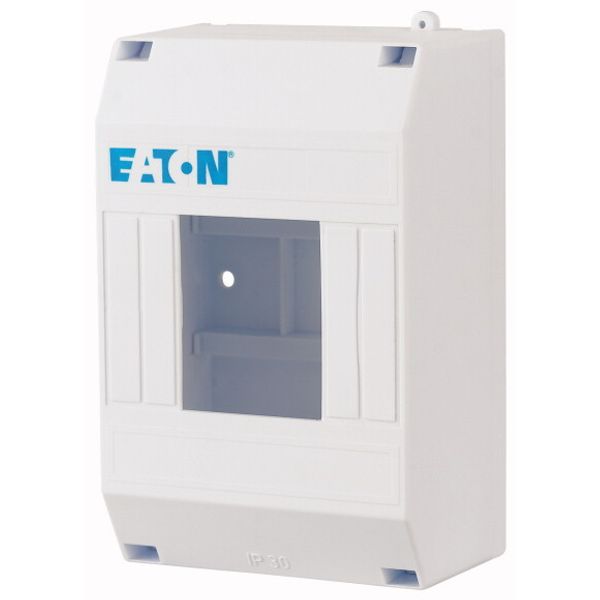

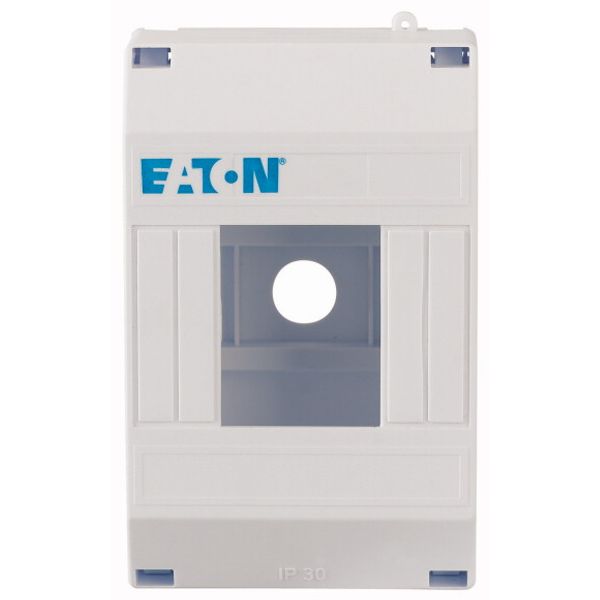

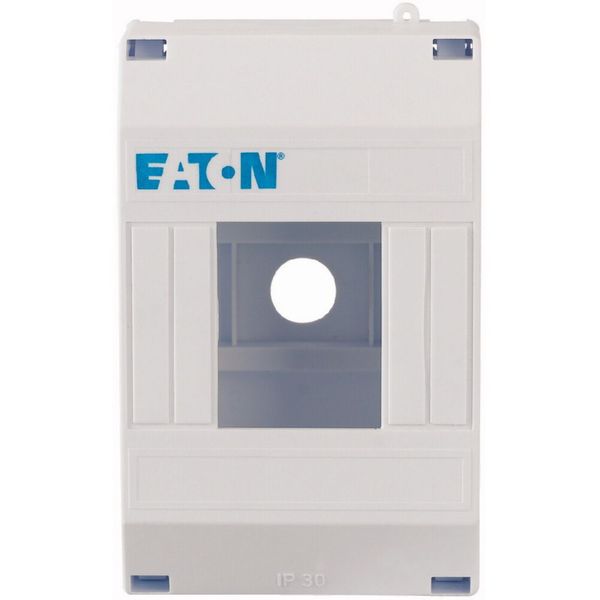

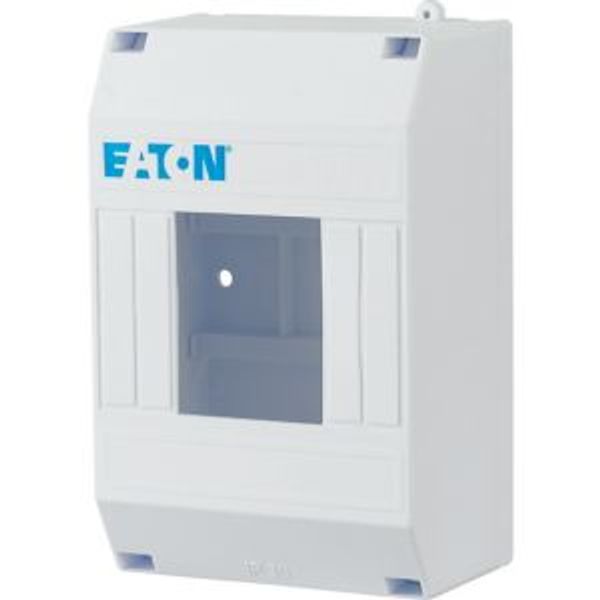

Micro compact distribution board, 1-row 4 SU IP30
Laos: Ei
Hankija laovaru: Jah
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
2,67 €
EAN: 4015081715084
MPN: 177065
Pakend: 1
Karp: 12
Hinnanguline tarneaeg meie laos (umbes):
1-4 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | MICRO-4 Micro compact distribution board, 1-row 4 SU IP30 |
| Bränd | EATON |
| Kategooriad |
Small Distribution Boards
|
| Päritoluriik | PL |
| Harmoneeritud süsteemi kood | 8538 1000 00 |
| Paigaldusviis | Pinnapealne |
| Kere materjal | Plast |
| Kaitseaste (IP) | IP30 |
| Katte kuju | Väljalõikega |
| Signal passing door | No |
Pakendamise üksikasjad
| Pakkimistase 1 | 4015081715084 |
| Pakkimistase 2 | 9008790640353 |
Muud tehnilised andmed
| Värvus | Valge |
| Laius | 80 mm |
| Kõrgus | 125 mm |
| Sügavus | 58 mm |
| RAL-number | 9003 |
| Koos montaažiplaadiga | No |
| Sisseehitussügavus | 70 mm |
| Ridade arv | 1 |
| Kõrgus | 0 mm |
| Katte liik | Puudub |
| Laius | 0 mm |
| EMC-variant | Yes |
| Laiendamine on võimalik | No |
| Sisemine sügavus | 53 mm |
| DIN-liist | Yes |
| Laius mooduli arvudes | 4 |
| Sulgemisviis | Muul viisil |
| Läbipaistev kate/uks | No |
| Lukuga | No |
| Earthing terminal block | No |
| Neutral terminal block | No |
Kirjeldus

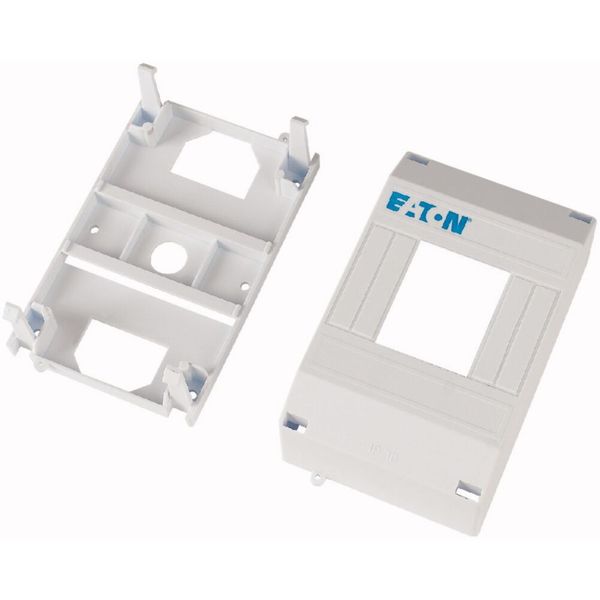

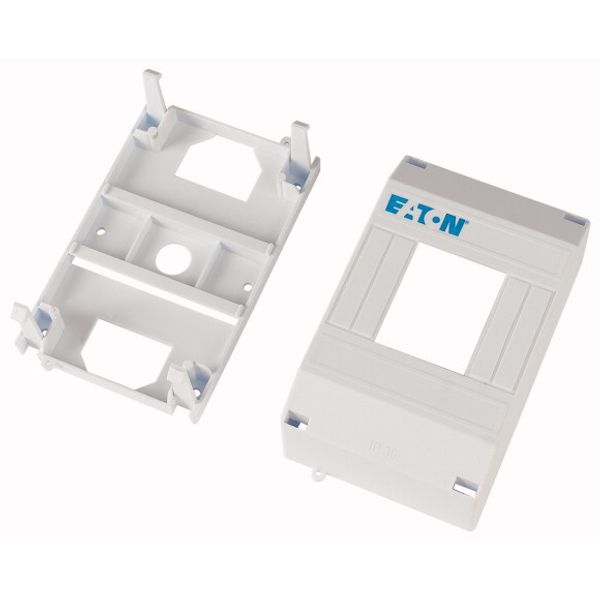

Plastic micro compact distribution board, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm and a current of up to 63 A, 400 V /50 Hz, IP30 degree of protection to IEC/EN 62208, approved for building service distribution boards in accordance with IEC/EN 61439-3, for surface mounting, top with 46-mm device opening, sealable as standard, white base and cover with screwless click technology, 1x 16.5mm knockout for cable entries on top and bottom, 4 space units.
