EATON

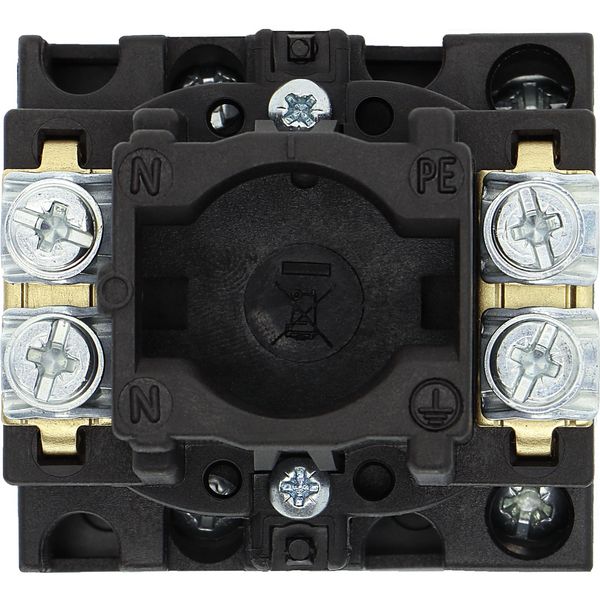

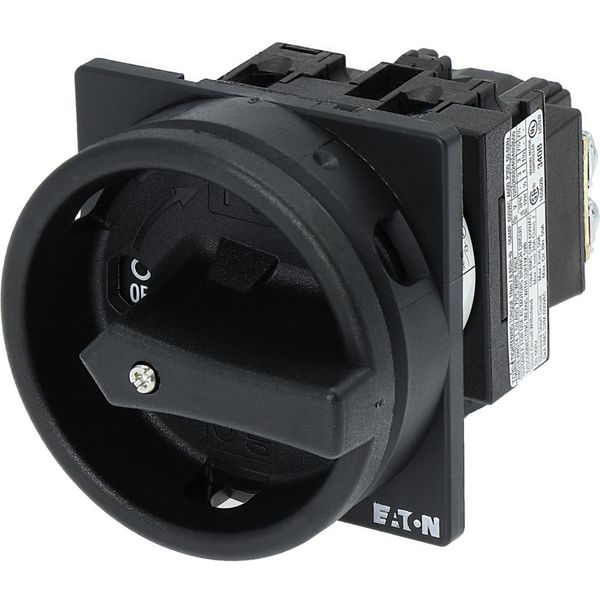

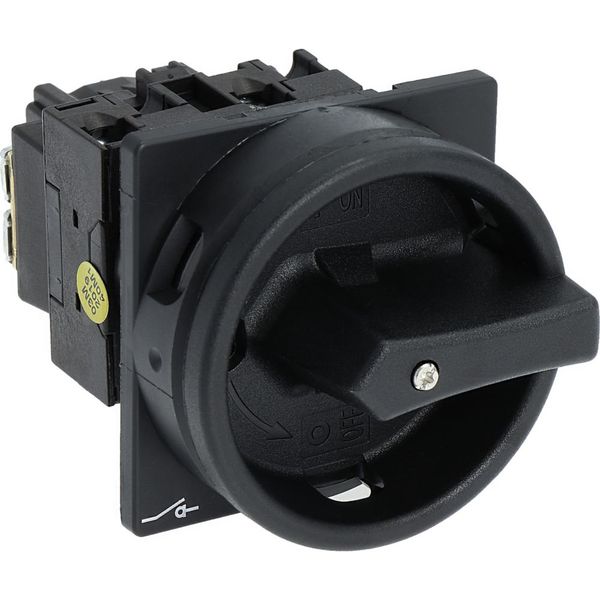

Main switch, T0, 20 A, flush mounting, 1 contact unit(s), 2 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) po

Müüja laos
Hind (ilma KM-ta):
23,12 €
Hind kehtib kuni 24.12.26
EAN: 4015080934516
MPN: 093451
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi T0-1-102/EA/SVB-SW Main switch, T0, 20 A, flush mounting, 1 contact unit(s), 2 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) po
Bränd EATON
Kategooriad Lülitite lahklülitid
Päritoluriik* GB
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood 8536 5080 00
Nominaalne püsivool Iu 20 A
Pooluste arv 2
Tunnus-talitluspinge 690 V
Kaitseaste (IP), esikülg IP65
Pealüliti variant Yes
Turvalüliti versioon No
Teenindus-/hoolduslüliti variant Yes
Nominaalne lühiajaline lühisvool LCW 0.32 kA

Pakendamise üksikasjad

Pakkimistase 1 4015080934516

Muud tehnilised andmed

Laius 65
Kõrgus 74
Sügavus 101
Tunnustalitlusvõimsus, AC-3, 400 V 5.5 kW
Normaalselt avatud abikontaktide arv 0
Normaalselt suletud abikontaktide arv 0
Arvutuslik tunnus-lühisvool Iq 6 kA
Ümberlülituvate abikontaktide arv 0
Lülitite arv 1
Blokeeritav Yes
Sisseehitatud mootorajam No
Peaahela ühendusviis Kruviühendus
Hädapeatamispaigaldise variant No
Juhtelemendi liik Ukse pöördajam
Tunnustalitlusvõimsus, AC-23, 400 V 5.5 kW
Juhtelemendi värvus Must
Sobib pinnasele paigaldamiseks No
Sobib eest paigaldamiseks Yes
Sobib esiküljele paigaldamiseks No
Sobib paigaldamiseks jaotuskilbile No
Sobib vahepealseks paigaldamiseks No
Maksimaalne nimitööpinge Ue AC 690 V
Mootorajam, valikuline No
Valikuline pingevabasti No
Seadme ehitus Fikseeritud paigaldusega seade
Tunnus-pidevvool, AC-21, 400 V 20 A
Lülitusvõimsus pingel 400 V 5.5 kW
Ümberlüliti variant No
Tunnus-kestevvool talitluses AC-23, 400 V 13.3 A
Kaitseaste (NEMA) 12
Eelmonteeritud kaabeldusega No

Kirjeldus

Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, 2 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
