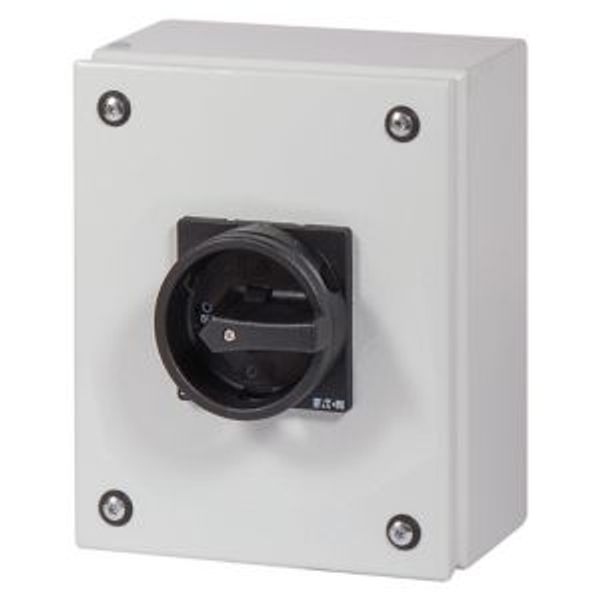

P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 1

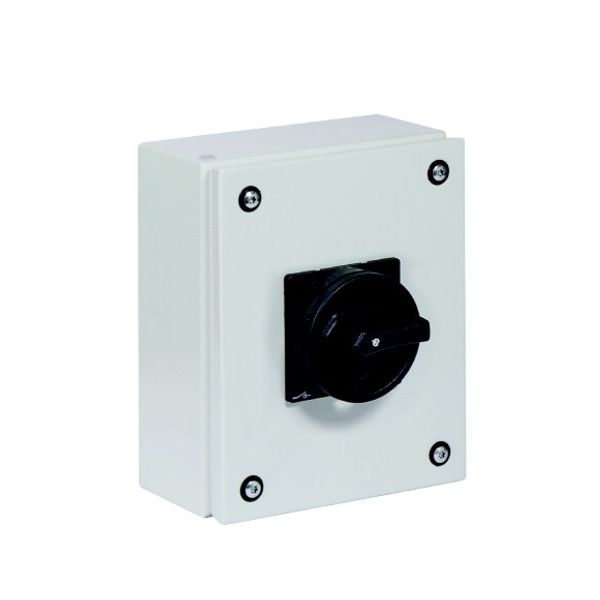

P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 2

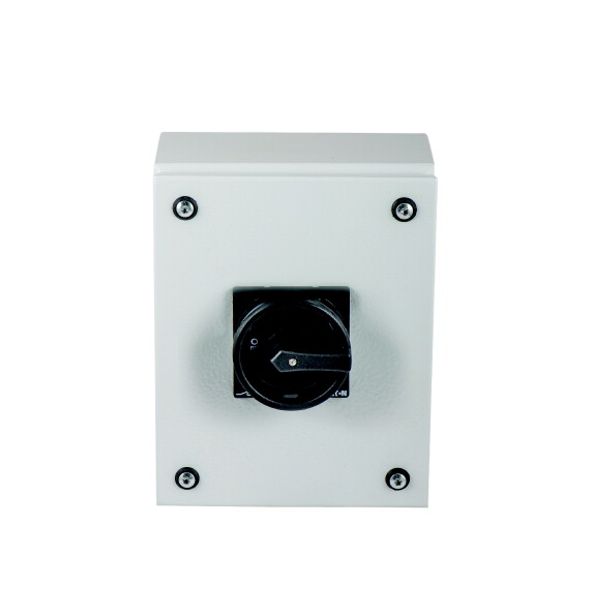

P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 3

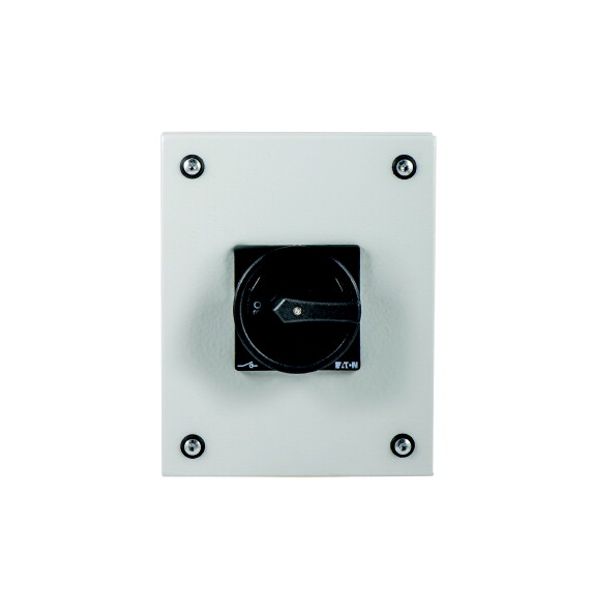

P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 4

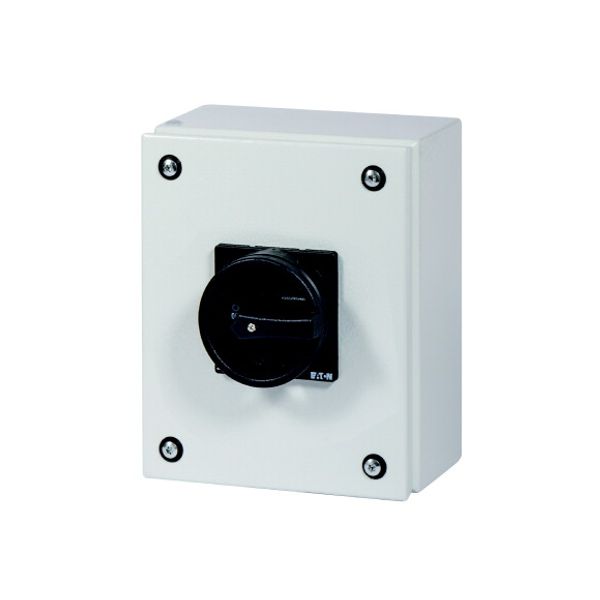

P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 5
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 6
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel image 7
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 1
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 2
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 3
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 4
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 5
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 6
P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel thumbnail 7
EATON

Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel

Ainult telli
EAN: 4015080896791
MPN: 197365
Pakend: 1
Hind (ilma KM-ta)
156,88 €
ühiku kohta
Minimaalne tellimiskogus: 1
Hinnanguline tarneaeg meie laos: 4-6 weeks
Hind kehtib kuni 24.12.26 või kuni kaupa jätkub

Tehniline teave

Toote seisukord Uus
Tootja nimi P3-63/SE3/SVB-SW Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel
Bränd EATON
Kategooriad Lülitite lahklülitid
Päritoluriik* GB
* Tegelik päritoluriik võib sõltuvalt tarn partiist erineda. Konkreetse päritoluriigi kinnitamiseks võtke palun ühendust oma kontohalduriga.
Harmoneeritud süsteemi kood 8536 5080 00
ETIM EC000216
Nominaalne püsivool Iu 63 A
Pooluste arv 3
Tunnus-talitluspinge 690 V
Kaitseaste (IP), esikülg IP65
Pealüliti variant Ei
Turvalüliti versioon Ei
Teenindus-/hoolduslüliti variant Jah
Nominaalne lühiajaline lühisvool LCW 1.26 kA

Pakendamise üksikasjad

Pakkimistase 1 4015080896791

Muud tehnilised andmed

Laius 200
Kõrgus 155
Sügavus 250
Tunnustalitlusvõimsus, AC-3, 400 V 30 kW
Normaalselt avatud abikontaktide arv 0
Normaalselt suletud abikontaktide arv 0
Arvutuslik tunnus-lühisvool Iq 100 kA
Ümberlülituvate abikontaktide arv 0
Lülitite arv 1
Blokeeritav Jah
Sisseehitatud mootorajam Ei
Peaahela ühendusviis Kruviühendus
Hädapeatamispaigaldise variant Ei
Juhtelemendi liik Ukse pöördajam
Tunnustalitlusvõimsus, AC-23, 400 V 30 kW
Juhtelemendi värvus Must
Sobib pinnasele paigaldamiseks Jah
Sobib eest paigaldamiseks Ei
Sobib esiküljele paigaldamiseks Ei
Sobib paigaldamiseks jaotuskilbile Ei
Sobib vahepealseks paigaldamiseks Ei
Maksimaalne nimitööpinge Ue AC 690 V
Mootorajam, valikuline Ei
Valikuline pingevabasti Ei
Seadme ehitus Komplektne seade korpuses
Tunnus-pidevvool, AC-21, 400 V 63 A
Lülitusvõimsus pingel 400 V 30 kW
Ümberlüliti variant Ei
Tunnus-kestevvool talitluses AC-23, 400 V 63 A
Kaitseaste (NEMA) 12
Eelmonteeritud kaabeldusega Ei

Kirjeldus

Main switch, P3, 63 A, surface mounting, 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, in steel enclosure
