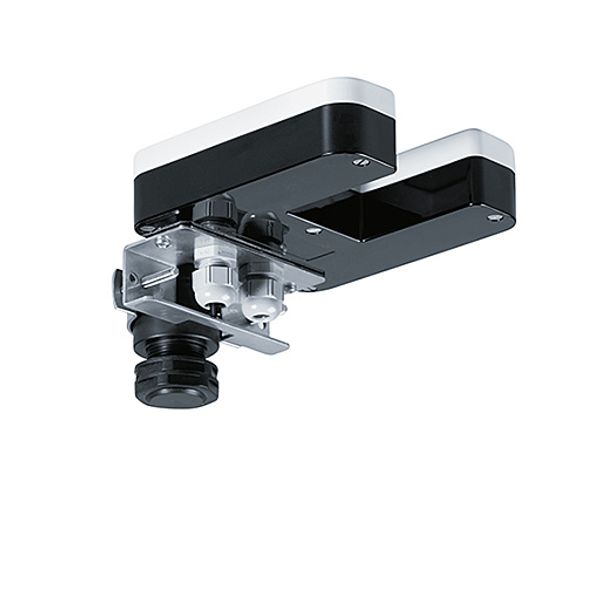

LM-SN - Precipitation sensor kit image 1
Zumtobel

Precipitation sensor kit

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
2 569,37 €
Hind kehtib kuni 24.12.25
EAN: 9005798138813
MPN: 22154283
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi LM-SN - Precipitation sensor kit
Bränd Zumtobel
Kategooriad Bus System Devices (KNX/Modbus)
Päritoluriik DE
Harmoneeritud süsteemi kood 9026 1029 00
Kaitseaste (IP) IP65

Pakendamise üksikasjad

Pakkimistase 1 9005798138813, 9005798138813

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

Device for detecting start and end of precipitation and determining the length of precipitation periods. Measured value: precipitation status (rain, snow, hail etc.), output: precipitation = relay OFF (even when operating voltage = 0); no precipitation = relay ON, sensor range: 25 cm², drop size: Ø 0.2 mm, switch-on condition: adjustable between 1 and 15 events within 50 s; switch-off delay: adjustable between 25 and 375 s; contact loading: max. 230V AC, 4 A; operating voltage: 24 V AC/DC ± 15 %, operating current: approx. 70 mA, heating current max. 1 A, ambient temperature: -25 °C... +55 ?, degree of protection: IP 65 to DIN 40050, EMC: EN 61321-1 with EN 61000-4-3, includes accessories for mounting on mast tube (Ø 34 to 50 mm), connecting terminals for 4 x 0.25 mm² LiYCY cables.
