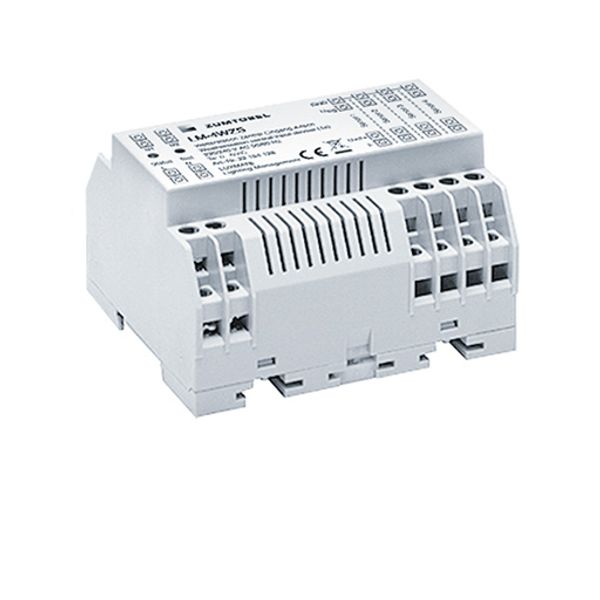

LM-4WZS (V) - Sensor input (weather sensors), 4x model image 1
LM-4WZS (V) - Sensor input (weather sensors), 4x model image 2
LM-4WZS (V) - Sensor input (weather sensors), 4x model thumbnail 1
LM-4WZS (V) - Sensor input (weather sensors), 4x model thumbnail 2
Zumtobel

Sensor input (weather sensors), 4x model

Laos: Ei Hankija laovaru: Ei Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
1 026,72 €
Hind kehtib kuni 24.12.25
EAN: 9005798386177
MPN: 22154305
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): Päringu alusel

Technical Information

Toote seisukord Uus
Tootja nimi LM-4WZS (V) - Sensor input (weather sensors), 4x model
Bränd Zumtobel
Kategooriad Bus System Devices (KNX/Modbus)
Päritoluriik AT
Harmoneeritud süsteemi kood 8538 9099 00
Laius mooduli arvudes 6

Pakendamise üksikasjad

Pakkimistase 1 9005798386177, 9005798386177

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

Preset sensor inputs for simultaneous analysis of four conventional meteorological sensors: wind speed, wind direction, outdoor temperature and precipitation. connection to mains supply and bus, input side: four preset sensor inputs. Measured values are converted according to defined type into the relevant physical variables such as °C or km/h and are supplied to the light and room management system via the bus Connection by means of screw terminals; housing for control-cabinet model made of flame-retardant, halogen-free polycarbonate, suitable for 35 mm DIN-rail mounting to EN 50022, permitted ambient temperature 0 °C to +50 °C, IP20 degree of protection, dimensions: 105 x 90 x 59 mm, 6 HP of 17.5 mm each.
