Zumtobel

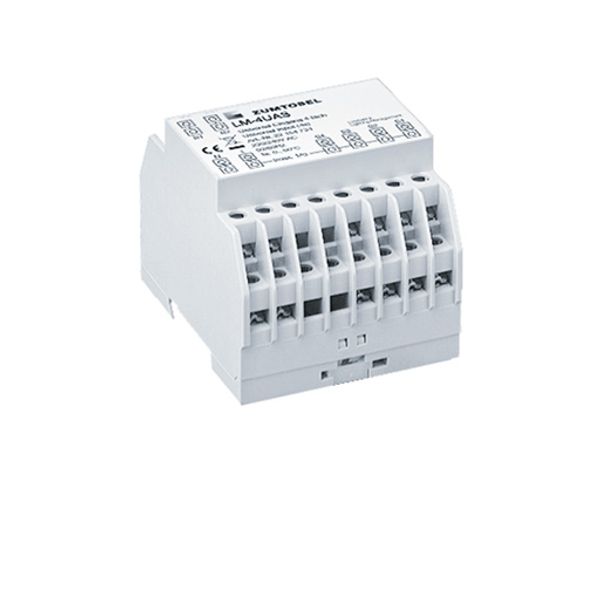

Universal input 4x, switch cabinet

Ainult telli
Hind (ilma KM-ta):
331,01 €
Hind kehtib kuni 24.12.26
EAN: 9008709079960
MPN: 22154732
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi LM-4UAS - Universal input 4x, switch cabinet
Bränd Zumtobel
Kategooriad Bus System Devices (KNX/Modbus)
Päritoluriik* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmoneeritud süsteemi kood 8537 1098 00
Laius mooduli arvudes 4
Kaitseaste (IP) IP20

Pakendamise üksikasjad

Pakkimistase 1 9008709079960, 9008709079960

Allalaadimised

CE DOC deklaratsioon (CE vastavusdeklaratsioon) RoHS deklaratsioon Müügibrošüür

Kirjeldus

Universal input 4x, switch cabinet, with four independently addressable inputs for integrating conventional light switches, motion detectors, time switches or other contact-makers in a bus-controlled lighting and room management system. Authorised service personnel can configure the system to suit. Depending on the addressing of an input, users can control all the actuators in a room, or one actuator group in the room. Input voltage 230V AC, 50/60 Hz, installed on 35 mm DIN rail to EN50022, width 4 HP (1 HP = 17.5 mm), made of halogen-free, flame-retardant polycarbonate, light grey. Bus and mains cable can be screwed to device inputs. Contact-maker must be designed for at least 230 V AC, with leads screw-connected to device inputs.
