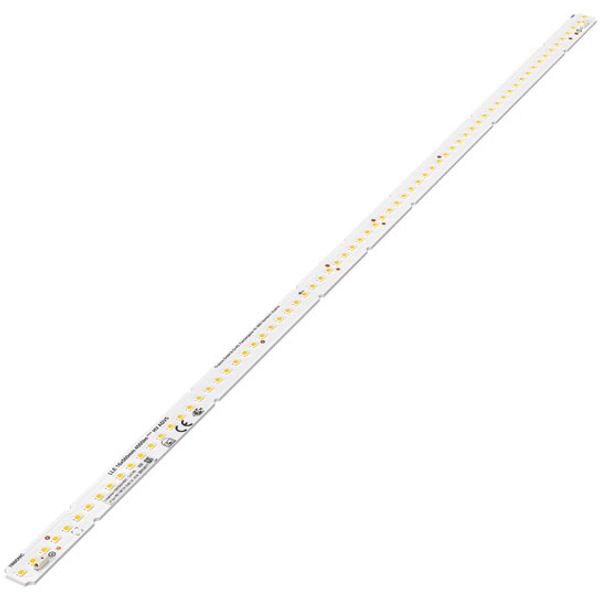

LED modules
Ainult telli
Hind (ilma KM-ta):
8,58 €
EAN: 9006210774510
MPN: 28004016
Karp: 1
Hinnanguline tarneaeg meie laos (umbes):
2-4 weeks
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | LED modules |
| Bränd | Tridonic |
| Kategooriad |
LED-moodulid
|
| Harmoneeritud süsteemi kood | 8539 5100 00 |
| Laius | 16 mm |
| Pikkus | 280 mm |
| Kaitseaste (IP) | IP00 |
| Lambi pinge | 30.4-35.3 V |
| Värvustemperatuur | 4000 K |
| Valgusvoog | 1276-2068 lm |
Pakendamise üksikasjad
| Pakkimistase 1 | 9006210774510 |
Muud tehnilised andmed
| Ühenduse liik | Pistikuklamber |
| Energiatõhususklass | A++ |
| Talitluspinge | 0 V |
| Valguse värvus EN 12464-1 järgi | Neutraalne 3300-5300 K |
| Talitlusvool | 200-500 mA |
| Vajalik on väline juhtplokk | No |
Kirjeldus
Ideal for compact linear luminaires designs ¦ Homogenous illumination thanks to small package distance ¦ 2 terminals for serial wiring ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 3,000 and 4,000 K ¦ Useful luminous flux 4,147 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 191 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 20 x 280 mm and 20 x 560 mm ¦ Simple installation via clips or screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
