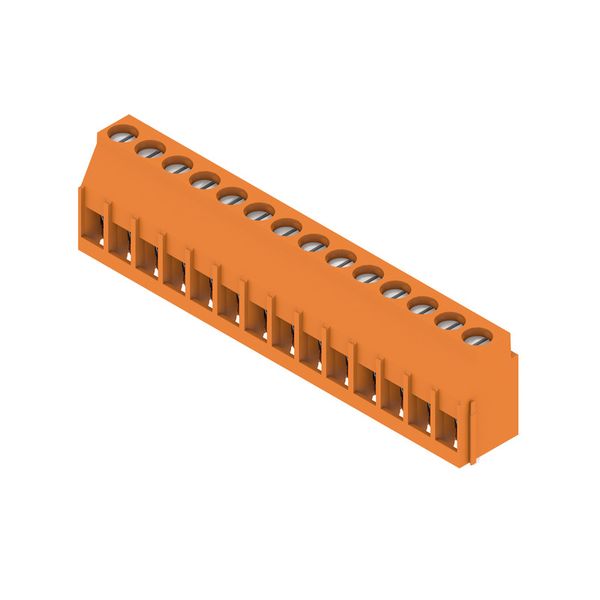

Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 1
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 2
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 3
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 4
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 5
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box image 6
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 1
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 2
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 3
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 4
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 5
Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box thumbnail 6
Weidmüller

PCB terminal, 5.08 mm, Number of poles: 14, Conductor outlet direction

Ainult telli Minimaalne tellimuse kogus: 24
Hind (ilma KM-ta):
4,92 €
Hind kehtib kuni 24.12.25
Vahesumma: 118,08 € MOQ: 24
EAN: 4032248693917
MPN: 1001950000
Karp: 1
Hinnanguline tarneaeg meie laos (umbes): 4-6 weeks

Technical Information

Toote seisukord Uus
Tootja nimi Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box
Bränd Weidmüller
Kategooriad PCB Connectors & Terminals
Päritoluriik CN
Harmoneeritud süsteemi kood 8536 9010 00
Tunnuspinge 320 V
Tasandite arv 1
Tunnus-impulsspinge 4 kV
Kaitseaste (IP) paigaldatult IP20
Nurk, PCB/juhi ühendus 0°/180° (horisontaalne)
Tunnusvool In 27.5 A
Elektriühendusi 14

Pakendamise üksikasjad

Pakkimistase 1 4032248693917

Muud tehnilised andmed

Kõrgus 20.3 mm
Kere värvus Oranž
Talitlustemperatuur -50-120 °C
Kinnitusviis Jootetina
Isolatsioonimaterjali tulekindlusklass UL94 järgi V0
Liigpingekategooria II
Saasteaste 2
Juhi ühenduse tüüp Kruviühendus
PCB ühenduse tüüp Jooteühendus
Haru pikkus 3.2 mm
Materjali ühenduspind Tina
Mooduli eralduselementide ühendused 5.08 mm
Ribamärgistuse tüüp Muul viisil
Ühendatava juhi ristlõige, massiivsoonega 0.5-6 mm²
Ühendatava juhi ristlõige, peenekiuline koos kaabli otsamuhviga 0.5-2.5 mm²
Ühendatava juhi ristlõige, peenekiuline ilma kaabli otsamuhvita 0.5-4 mm²
Isolatsioonimaterjal polüamiid
PCB kinnituse tüüp Muul viisil

Kirjeldus

LL 5.08/14/90 3.2SN OR BX | Printed circuit board terminals, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box
