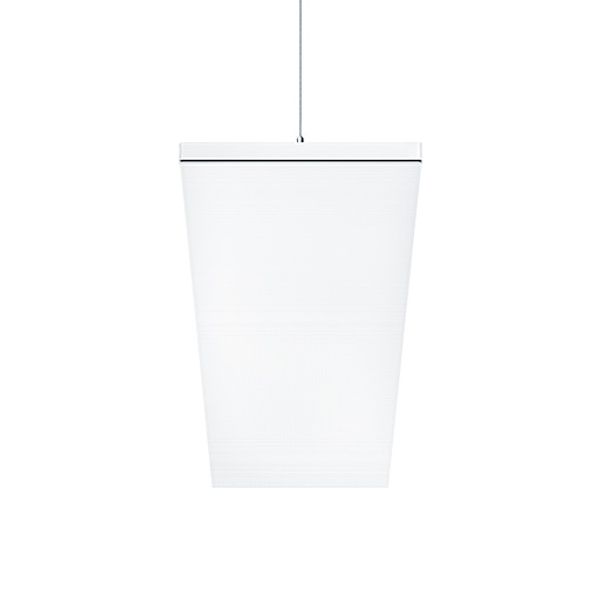

Pendant luminaire
Laos: Ei
Hankija laovaru: Ei
Minimaalne tellimuse kogus: 1
Hind (ilma KM-ta):
Hind nõudmisel
EAN: 9010299829160
MPN: 42939162
Pakend: 1
Hinnanguline tarneaeg meie laos (umbes):
Päringu alusel
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | LF3 D/I 7300-940 L15 EVG WH - Pendant luminaire |
| Bränd | Zumtobel |
| Kategooriad |
Seina- ja laevalgustid
|
| Päritoluriik | AT |
| Harmoneeritud süsteemi kood | 9405 1190 00 |
| Laius | 267 mm |
| Kere värvus | Valge |
| Värviesitusindeks | 90-100 (klass 1A) |
| Pikkus | 1446 mm |
| Kõrgus/sügavus | 50 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK03 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP20 |
| Valgusvoo nurk | Eriti lai valgusvoo nurk >80° |
| Värvustemperatuur | 4000 K |
| Süsteemi võimsus | 64.7 W |
| Efektiivne valgusvoog | 7290 lm |
| Valgusti tõhusus | 113 lm/W |
Pakendamise üksikasjad
| Pakkimistase 1 | 9010299829160, 9010299829160 |
Muud tehnilised andmed
| Kaitseklass | I |
| Lambipesa | Muul viisil |
| Juhi ristlõige | 2.5 mm² |
| Ühenduse liik | Pistikuklamber |
| Pinge liik | AC |
| Liikumisanduriga | No |
| Hajuti liik | Puudub |
| Juhtliidese tüüp | LED-valgusti voolujuhtimisega seadis |
| Valgustusanduriga | No |
| Sobib ripp-paigalduseks | No |
| Kere materjal | Teras |
| Sobib ridavalgustuseks | No |
| Sobib turvavalgustuseks | No |
| Valgusjaotus | Otsene/kaudne |
| Valgusjaotus | Sümmeetriline |
| Kattematerjal | Opaalplast |
| Lambiga | Yes |
| Tulekindlus "D" | No |
| Sisseehitatud isoleeritud kate, tulekindlus "F koos kattega" | Yes |
| Sobib vastavalt lampide arvule | 1 |
| Sobib sisseehitatud paigalduseks | No |
| Sisaldab juhtseadist | Yes |
| Kuvariga töökohale | Yes |
| Sobib pindpaigalduseks | No |
| Valguse värvus | Valge |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Juhtmestiku liik | Suitable for through wiring |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Värvi konsistents (McAdam'i ellips) | SDCM3 |
| Süttivuskatse IEC 60695-2-11järgi | 650 °C - 30 s |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | No |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | No |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimisfunktsioon puudub | Yes |
| Reguleerimine, DSI (digital signal interface) | No |
| Unified Glare Ratio (UGR) | 15 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 13 |
| Max. number of luminaires per miniature circuit breaker B16 | 8 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 95 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | Ei |
| Luminous flux adjustable | Ei |
| Beam angle adjustable | Ei |
| Exchangeable control gear | Yes |
| Sobib lakke paigaldamiseks | No |
| Võimsustegur | 0.86 |
Allalaadimised
Kirjeldus
Frameless indirect/direct LED pendant luminaire with MPO+ micropyramidal optic and separately controllable indirect light for ceiling illumination with batwing light distribution. Luminaire input power: 64.7 W, electronic ballast with LED converter; LED service life lasts 100000 h before luminous flux is reduced to 95% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 7290 lm, Luminaire efficacy: 113 lm/W. Colour rendering Ra > 90, colour temperature 4000 K. Direct/indirect illumination in 70:30 ratio; LEDs coupled in on both sides; light guided by high-efficiency LitePrint® waveguide technology based on multilayer MPO+ micropyramidal optic with seamless look and defined light emission for glare-free light distribution with UGR < 19 and L65 < 3000 cd/m² as per EN 12464; reduced luminance at steep angles designed to cut glare on tilted displays and allow maximum flexibility; evenly spaced LED light points; uniform indirect light distribution optimized for low suspension height of at least 50 cm. Smooth outer diffuser of high grade polymethylmethacrylate, low dirt sensitivity and simple cleaning due to smooth outer cover. High quality luminaire housing made of powder coated sheet steel with all-round optic frame without seam or gap in white. Please order cord suspension kit with transparent connecting cable separately. Suspension length with continuous adjustment. Luminaire wired with halogen-free leads; Dimensions: 1446 x 267 x 50 mm, weight: 11.3 kg.
