STREETLIGHT FLEX LARGE RW35ST P 110W 727 WAL
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | STREETLIGHT FLEX LARGE RW35ST P 110W 727 WAL |
| Bränd | LEDVANCE |
| Kategooriad |
Tänava- ja pargivalgustus
|
| Päritoluriik* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmoneeritud süsteemi kood | 9405 4239 00 |

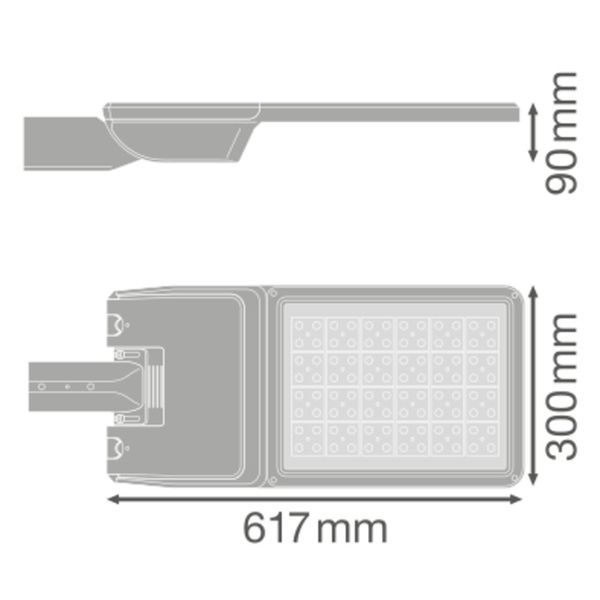

| Laius | 300 mm |
| Värviesitusindeks | 70-79 (klass 2A) |
| Pikkus | 617 mm |
| Kõrgus/sügavus | 90 mm |
| Lamp | LED, mittevahetatav |
| Löögikindlus | IK08 |
| Nimipinge | 220-240 V |
| Kaitseaste (IP) | IP66 |
| Värvustemperatuur | 2700 K |
| Süsteemi võimsus | 110 W |
| Efektiivne valgusvoog | 15200 lm |
| Valgusti tõhusus | 138 lm/W |
Pakendamise üksikasjad
| Pakkimistase 1 | 4058075552425, 4058075552425 |
| Pakkimistase 2 | 4058075552425 |
Muud tehnilised andmed
| Paigaldusviis | Posti otsa |
| Kaitseklass | II |
| Lambipesa | Puudub |
| Pinnatöötlus | Pulbervärvitud |
| Pinge liik | AC |
| Juhtliidese tüüp | Electronic ballast |
| Pooluste arv | 2 |
| Kere materjal | Alumiinium |
| Kattematerjal | Klaas, läbipaistev |
| Ühenduskaabliga | No |
| Lambiga | Yes |
| Tulekindlus "D" | No |
| Sobib vastavalt lampide arvule | 0 |
| Sisaldab juhtseadist | Yes |
| Seadistatav optika | No |
| Sobib ülaotsa mõõtmetega | 60 mm |
| Nimivool | 528 mA |
| Kaugjuhtimine | Puudub |
| Juhtmevaba juhtimine | No |
| Valgustuse programmjuhtimine | No |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | Yes |
| Juhtmestiku liik | Ending |
| Tunnus-eluiga, L70/B50 at 25 °C | 100000 h |
| Tunnus-eluiga, L80/B10 at 25 °C | 100000 h |
| Tunnus-eluiga, L90/B10 at 25 °C | 100000 h |
| Värvi konsistents (McAdam'i ellips) | SDCM5 |
| Tunnus-ümbrustemperatuur IEC62722-2-1 järgi | -40-50 °C |
| Leedi nimivool püsivoolu korral | 528 mA |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | No |
| Reguleerimine, GPRS | No |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | No |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimisfunktsioon puudub | Yes |
| Valguse hajutaja | Focal lens |
| Reguleerimine, DSI (digital signal interface) | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Võimsustegur | 0.9 |
Allalaadimised
Kirjeldus

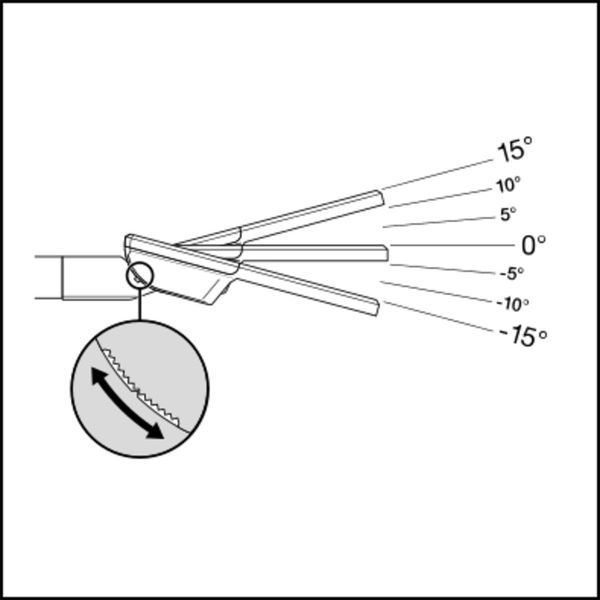

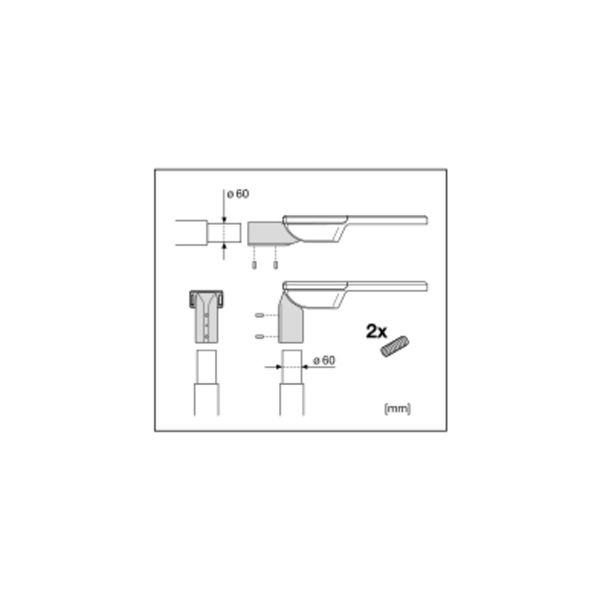

Light distribution optimized for wider roads and area lighting. Product features: Light distribution with great depth. Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C). Spigot for 48-60 mm poles included. Additional reduction for 42 mm and adapter for 76 mm poles available separately. Adjustable spigot for both side-entry and post-top installation. +/- 15° tilt angle adjustment without opening the housing. High luminous efficacy: up to 151 lm/W. Operating temperature: -40...50 °C. High surge protection: up to 10 kV (L/N-GND). Push fit terminal for a quick and easy electrical connection. Protection class: II. Product benefits: Durable design and highest quality component selection for long lasting performance. Quick and easy wiring, due to tool-free housing opening and push button terminal. High light uniformity. 3 light colors available, perfectly suited to illuminate highly diverse surroundings. No upper light output ratio (ULOR 0%) when mounted at 0° tilt. Automatic mains disconnection when opening the housing. 5 years guarantee. Areas of application: Outdoor use (IP66). M-, C- and P-class roads acc. to EN 13201. Parking. Public areas. Industry. Equipment / Accessories: Spigot for 42 and 76 mm poles available separately.
Tarvik
