LED drivers
Ainult telli
EAN: 9006210644059
MPN: 28002201
Karp: 1
Hind (ilma KM-ta)
64,45 €
ühiku kohta
Minimaalne tellimiskogus: 1
Hinnanguline tarneaeg meie laos: 2-4 weeks
Hind kehtib kuni järgmise hinnakirjani või kuni kaupa jätkub
Tehniline teave
| Toote seisukord | Uus |
| Tootja nimi | LED drivers |
| Bränd | Tridonic |
| Kategooriad |
LED-draiverid
|
| ETIM | EC002710 |
| Laius | 70 mm |
| Kõrgus | 28.3 mm |
| Kere | Plastkere |
| Pikkus | 120 mm |
| Sekundaarpinge | 20-50 V |
| Väljundvõimsus | 7-38 W |
| Kaitseaste (IP) | IP20 |
| Väljundvool | 350-1050 mA |
| Sobib konstantsele voolule | Jah |
| Sobib konstantsele pingele | Ei |
| Reguleerimisfunktsioon puudub | Ei |
Pakendamise üksikasjad
| Pakkimistase 1 | 9006210644059 |
Muud tehnilised andmed
| Kaitseklass | I |
| Mudel | Dünaamiline |
| Läbimõõt | 75.39 mm |
| Sobib väliskasutuseks | Ei |
| Sobib alalispingele (primaarpoolel) | Jah |
| Konstantse valgusvoo juhtimine | Jah |
| Saadaval on rakenduste IFTTT sobitustugi | Ei |
| Reguleerimine, 0-10 V | Ei |
| Reguleerimine, 1-10 V | Ei |
| Reguleerimine, DALI | Jah |
| Reguleerimine, DMX | Ei |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | Ei |
| Reguleerimine, GPRS | Ei |
| Reguleerimine, LineSwitch | Ei |
| Reguleerimine, tootja süsteemi | Jah |
| Reguleerimine, peaahela pinge modulatsiooni | Ei |
| Reguleerimine, faasi väljalülitamine | Ei |
| Reguleerimine, faasi sisselülitamine | Ei |
| Reguleerimine, programmeeritav | Jah |
| Reguleerimine; RF (raadiaosagedus) | Ei |
| Reguleerimine, siinuslaine redutseerimine | Ei |
| Reguleerimine, puutetundlik | Ei |
| Reguleerimine, Zigbee | Ei |
| Reguleerimine surunupuga | Jah |
| Reguleerimine, DSI (digital signal interface) | Jah |
| Operation by Bluetooth | Ei |
| Compatible with Apple HomeKit | Ei |
| Compatible with Google Assistant | Ei |
| Compatible with Amazon Alexa | Ei |
| Ühildub Casambiga | Ei |
Kirjeldus

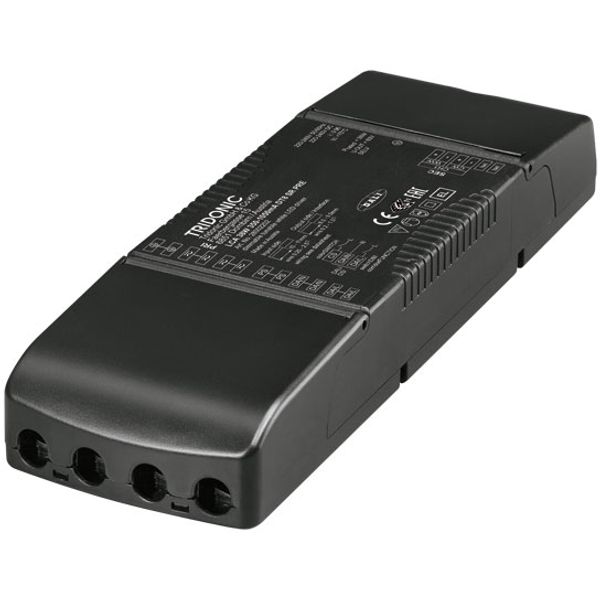

NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) ¦ Dimmable built-in constant current 2-channel LED driver with DALI DT6 ¦ Dimming range 1 to 100 % ¦ Suitable for luminaires of protection class I and protection class II (see data sheet chapter 3.4 for details) ¦ Adjustable output current between 350 and 1,050 mA for each channel via I-SELECT 2 plugs or DALI ¦ Max. output power 38 W ¦ Up to 89 % efficiency ¦ Power input on stand-by < 0.25 W ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, white ¦ Type of protection IP20 ¦ one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION V2) ¦ proportionSWITCH ¦ Terminal blocks: 45° push terminals ¦ Adjustable output current in 1-mA-steps (DALI, I-SELECT 2) ¦ Constant light output function (CLO) ¦ proportionSWITCH with pre defined scenes (split between different channel scenes) ¦ switchDIM and proportionSWITCH with memory function ¦ Power-up fading and fade2zero ¦ Configurable via DALI ¦ Protective features (overtemperature, short-circuit, overload, no-load, reduced surge amplification) ¦ Intelligent Voltage Guard (overvoltage and undervoltage monitoring) ¦ Suitable for emergency escape lighting systems acc. to EN 50172 ¦ Application-oriented operating window for maximum compatibility ¦ Best energy savings due to low stand-by losses ¦ Flexible configuration via DALI and I-SELECT 2 ¦ For spot light and downlight in retail and hospitality applications ¦ Direct and indirect lighting application
