LED drivers
Technical Information
| Toote seisukord | Uus |
| Tootja nimi | LED drivers |
| Bränd | Tridonic |
| Kategooriad |
LED-draiverid
|
| Laius | 30 mm |
| Kõrgus | 21 mm |
| Kere | Metallkere |
| Pikkus | 280 mm |
| Sekundaarpinge | 93-217 V |
| Väljundvõimsus | 23.25-71.4 W |
| Kaitseaste (IP) | IP20 |
| Väljundvool | 250-350 mA |
| Sobib konstantsele voolule | Yes |
| Sobib konstantsele pingele | No |
| Reguleerimisfunktsioon puudub | Yes |
Pakendamise üksikasjad
| Pakkimistase 1 | 9006210673554 |
Muud tehnilised andmed
| Kaitseklass | I |
| Mudel | Staatiline |
| Läbimõõt | 36.62 mm |
| Sobib väliskasutuseks | No |
| Sobib alalispingele (primaarpoolel) | Yes |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | No |
| Reguleerimine, GPRS | No |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | No |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimine, DSI (digital signal interface) | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Ühildub Casambiga | No |
Kirjeldus

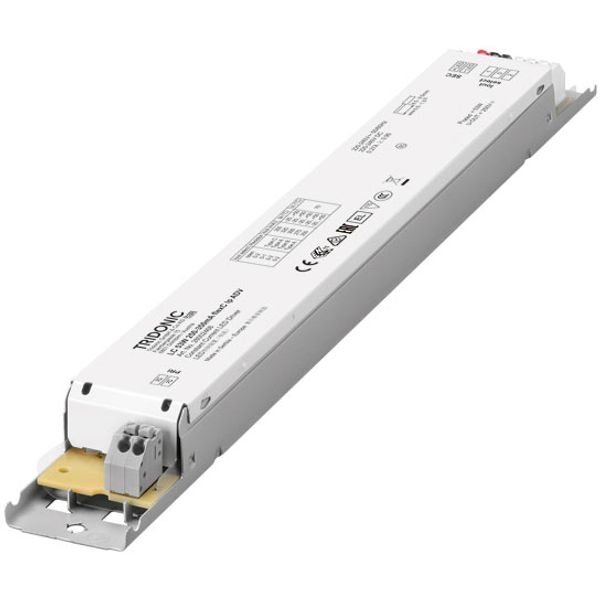

LED Constant current LED driver for luminaire installation ¦ New version DC operating with EL marking ¦ For luminaires of protection class I and protection class II ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Output current adjustable between 250 – 350 mA ¦ Max. output power 71 W ¦ Up to 91.5 % efficiency ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Low profile metal casing with white cover ¦ Type of protection IP20 ¦ Terminal blocks: 45° push terminals ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ Burst protection voltage 1 kV ¦ Surge protection voltage 1 kV (L to N) ¦ Surge protection voltage 2 kV (L/N to earth) ¦ For linear/area lighting in office applications
