LED drivers
Technical Information
| Toote seisukord | Uus |

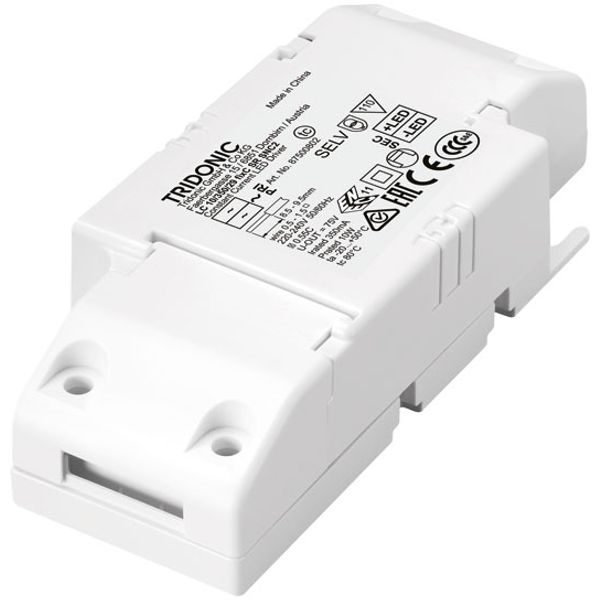

| Tootja nimi | LED driver LC 10W 500mA fixC SR SNC2 |
| Bränd | Tridonic |
| Kategooriad |
LED-draiverid
|
| Laius | 43 mm |
| Kõrgus | 22.5 mm |
| Kere | Plastkere |
| Pikkus | 100 mm |
| Sekundaarpinge | 11-20 V |
| Väljundvõimsus | 5.5-10 W |
| Kaitseaste (IP) | IP20 |
| Väljundvool | 500 mA |
| Sobib konstantsele voolule | Yes |
| Sobib konstantsele pingele | No |
| Reguleerimisfunktsioon puudub | Yes |
Pakendamise üksikasjad
| Pakkimistase 1 | 9006210678788 |
Muud tehnilised andmed
| Kaitseklass | II |
| Mudel | Staatiline |
| Läbimõõt | 48.3 mm |
| Sobib väliskasutuseks | No |
| Sobib alalispingele (primaarpoolel) | No |
| Konstantse valgusvoo juhtimine | No |
| Saadaval on rakenduste IFTTT sobitustugi | No |
| Reguleerimine, 0-10 V | No |
| Reguleerimine, 1-10 V | No |
| Reguleerimine, DALI | No |
| Reguleerimine, DMX | No |
| Reguleerimine potentsiomeetriga, (sisseehitatud) | No |
| Reguleerimine, GPRS | No |
| Reguleerimine, LineSwitch | No |
| Reguleerimine, tootja süsteemi | No |
| Reguleerimine, peaahela pinge modulatsiooni | No |
| Reguleerimine, faasi väljalülitamine | No |
| Reguleerimine, faasi sisselülitamine | No |
| Reguleerimine, programmeeritav | No |
| Reguleerimine; RF (raadiaosagedus) | No |
| Reguleerimine, siinuslaine redutseerimine | No |
| Reguleerimine, puutetundlik | No |
| Reguleerimine, Zigbee | No |
| Reguleerimine surunupuga | No |
| Reguleerimine, DSI (digital signal interface) | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Ühildub Casambiga | No |
Kirjeldus
Independent driver with strain-relief housing ¦ Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Output current 250, 350, 500 or 700 mA ¦ Max. output power 10 W ¦ BIS approval mark for art. no.: 87500802, 87500804. ¦ Nominal lifetime up to 50,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, white ¦ Type of protection IP20 ¦ Push-in terminals ¦ 2 separate strain relief parts for input and output cables with highly robust clamps ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ No output current overshoot at mains on/off ¦ Burst protection voltage 1 kV ¦ Surge protection voltage 0.5 kV (L to N) ¦ Surge protection voltage 1 kV (L/N to earth) ¦ For spot light and downlight in retail and hospitality applications ¦ For panel light and area light in office and education application
